YANHUA - YH TECH ACDP Module #15 Mercedes-Benz DME Bench Cloning Kit ACDP

YANHUA - YH TECH

ACDP Module #15 For Mini / Mercedes-Benz DME Bench Cloning Kit

$299.99
Adding to cart… The item has been added
Item #:
41075
SKU:
YH-15 See Legacy SKUs
Condition:
New

ACDP Module 15 Mercedes-Benz DME Bench Cloning

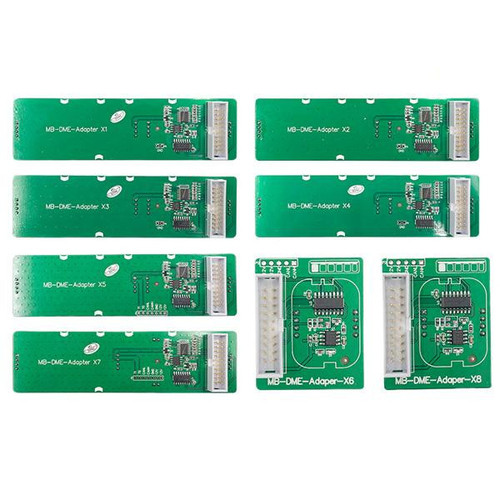

This Kit includes 8 special Interface Boards that are designed to connect directly to the Mercedes DME Modules listed below. Using these special Interface Boards, instead of connecting individual wires directly to the DME, prevents reverse polarity connections and simplifies the process of data reading.

Interface Board Vehicle Coverage:

  • X1 Interface Board: Mercedes-Benz 152/157/274/276/278 (MED17.7.3), 272/276 (MED17.7.3.1) 276/278 (MED17.7.1), etc.
  • X2 Interface Board: Mercedes-Benz 133/270/274 MED17.7.2), etc.
  • X3 Interface Board: Mercedes-Benz 260/264 (MED17.7.7), etc.
  • X4 Interface Board: Mercedes-Benz diesel vehicle 642 (EDC17CP01), 642/651 (EDC17CP46), 626/622/651 (EDC17C66), 651/642 (EDC17CP57), 651/642 (EDC17CP10), etc
  • X5 Interface Board: Mercedes-Benz 272/279 (ME17.7), etc.
  • X6 Interface Board: Mercedes-Benz diesel vehicle 642/654 (MD1CP001), etc.
  • X7 Interface Board: Mercedes-Benz 177/178 (MED17.7.5), etc.
  • X8 Interface Board: Mercedes-Benz CLS/GT (MG1CP002), etc.

Features:

  • No opening of the DME Housing is required when using these Interface Boards
  • No drilling of the DME Housing is required when using these Interface Boards
  • No internal PCB Connections opening are required when using these Interface Boards
  • Simple and efficient, plug and play, safe and reliable
*Please note that Module 3, 8, 12, 15, 18, 19, 25, and 30 use a different interface board than ACDP 1st generation. If you are using ACDP 2nd generation, you will need to purchase the above modules in the Generation 2 version for them to be compatible with ACDP2. Additionally, ACDP2 utilizes different PC software. Please do not use PC software designed for ACDP 1st Generation with ACDP 2nd Generation.
