The new Xhorse Key Tool Max Pro is the latest Universal Remote Generator that brings advanced performance with expanded Immo Programming capability. The new Key Tool Max Pro is an upgrade to the existing Key Tool Max. The Key Tool Max Pro combines the functions of Key Tool Max and Mini OBD Module. All of the coverage of these two devices is combined into one unit. The new Key Tool Max Plus also has the addition of CANFD for GM vehicles and battery voltage measurement.
Features:
Generate Transponder:
lmmo Programming:
Connect KEY TOOL MAX PRO to the leakage detection cable (included with purchase) to test whether a remote battery is having electric leakage (range: 1μA~35μA) and detect the voltage of a remote battery (range: 0V~36V).
Remote Clone:
Supports HCS/Fixed code cloning, non-HCS rolling code cloning,
PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.
Generate Remote:
Generate remote for over 6000 vehicle remotes of 200 car brands worldwide.
Generate garage remote for over 100 models.
Frequency Detection:
Supports frequency detection within the range of 300-450MHz.
Compatible with Xhorse Key Cutting Machines:
KEY TOOL MAX PRO can be used to control Xhorse key cutting machines
via Bluetooth to finish various tasks like all key lost, find bitting, cut by
bitting etc., saving much time for its users. (Support DOLPHIN, MINI
PLUS, XC-MINI, etc.)
New Features Coming Soon:
KEY TOOL MAX PRO is projected to add programming feature of BMW CAS3 and some Toyota models soon plus a special feature coming soon!
Technical Support:
With 'Customer Service' on Xhorse APP, you'll get live and free
technical support from a professional and dedicated team to help you tackle any problems.
Worry-free Warranty:
A one-year (365 days) warranty is offered by Xhorse from the date you purchased the product.
Specifications:
Package Includes:
Key Tool Max Pro
OBD to D815 Cable
Remote Programming cable
USB cable
Leakage Detection cable
User manual
Compatible Blades for remotes:
KeyDIY Blades
Features:
- Immo Programming
- Vehicle Maintenance
- Service Light Reset
- Remote Signal Detection
- Remote Battery Voltage Detection
- Generate Wired/Wireless Remotes and Smart Keys
- Program / Clone Transponders Using Xhorse Super Chips
- Generate Special Transponders
- Renew Remotes
- Recognize and Clone Access Cards
- Generate and Clone Fixed Code Garage Remotes
- Frequency Detection and Remote Cloning
- Control Xhorse Key Cutting Machines

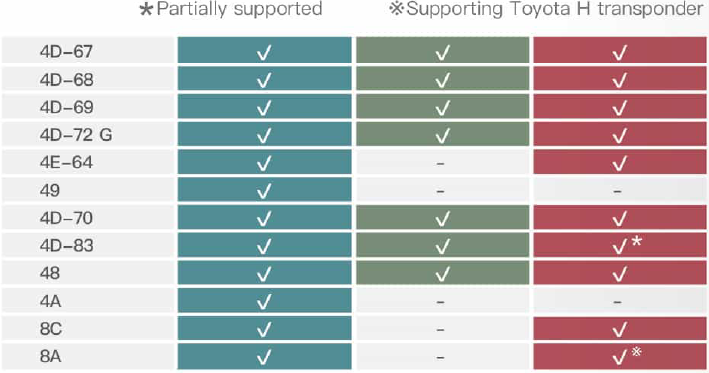

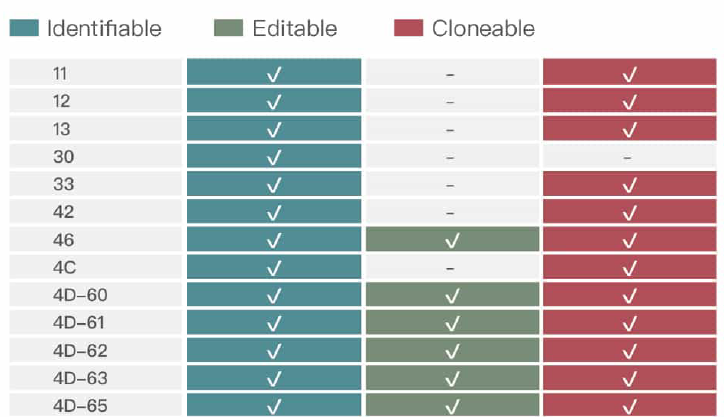

- Supports transponder identification of most immobilizer transponders in the US Market
- Supports editing and coping of most common transponders
- Supports ID46, ID48(96bits), and Toyota 8A/H transponder online calculation
Generate Transponder:
- Generate immobilizer transponders for over 850 car models of 80 makes worldwide.
- Generate immobilizer transponders and write immobilizer data, especially for some special car models, old car models, etc.
lmmo Programming:
- Supports immo programming for thousands of popular car models.
- Supports CANFD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc.
- Support XTPMS programming, up to 20 sensors simultaneously
- Reprogram XTPMS sensor
- Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)
- Copy and change sensor ID
- Read TPMS data like tire pressure, temperature, battery, etc.
- Support OBD reading, writing, read & clear DTCs
- Compatible with multiple car models, support for more models coming soon
Connect KEY TOOL MAX PRO to the leakage detection cable (included with purchase) to test whether a remote battery is having electric leakage (range: 1μA~35μA) and detect the voltage of a remote battery (range: 0V~36V).
Remote Clone:
Supports HCS/Fixed code cloning, non-HCS rolling code cloning,
PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.
Generate Remote:
Generate remote for over 6000 vehicle remotes of 200 car brands worldwide.
Generate garage remote for over 100 models.
Frequency Detection:
Supports frequency detection within the range of 300-450MHz.
Compatible with Xhorse Key Cutting Machines:
KEY TOOL MAX PRO can be used to control Xhorse key cutting machines
via Bluetooth to finish various tasks like all key lost, find bitting, cut by
bitting etc., saving much time for its users. (Support DOLPHIN, MINI
PLUS, XC-MINI, etc.)
New Features Coming Soon:
KEY TOOL MAX PRO is projected to add programming feature of BMW CAS3 and some Toyota models soon plus a special feature coming soon!
Technical Support:
With 'Customer Service' on Xhorse APP, you'll get live and free
technical support from a professional and dedicated team to help you tackle any problems.
Worry-free Warranty:
A one-year (365 days) warranty is offered by Xhorse from the date you purchased the product.
Specifications:
- Battery capacity 3375mAh
- Battery life > 6Hours
- Stand time > 5Days
- Brightness > 400nits
- Screen resolution 1280*720P
- Camera resolution 800W
- WiFi & Bluetooth 802. lla/b/g/n/ac & 4.2 BLE
Package Includes:
Key Tool Max Pro
OBD to D815 Cable
Remote Programming cable
USB cable
Leakage Detection cable
User manual
Compatible Chips for cloning:
Xhorse Chips: XH-4D, XH-46, XH-48, XH-SUPERCHIP-10PACKCompatible Blades for remotes:
KeyDIY Blades
Xhorse KEY TOOL MAX PRO Uboxing Video:
Key Tool Max Pro and Key Tool Max Comparison Table
| System: | Quad core CPU | Quad core CPU |
|---|---|---|
| Memory: | 1G+8G | 1G+8G |
| OBD Module: | Yes,Built-in | Mini OBD Tool |
| CANFD Module: | Yes | X |
| Current/Voltage Test Module: | Yes | X |
| IMMOBILIZER PROGRAMMING | Yes,Built-in | External Mini OBD Tool |
| Cadillac CT4/CT5 CAN_FD | Yes | X |
| Buick GL8/Encore etc. CAN_FD | Yes | X |
| Chevyrolet Cavalier/Trax etc. CAN_FD | Yes | X |
| Maintenance | Yes,Built-in | External Mini OBD Tool |
| Generate Remote (flip, remote, smart card, Toyota smart card, garage door etc.) | Yes | Yes |
| Remote Clone | Yes | Yes |
| Identify/clone Transponder | Yes | Yes |
| Generate Transponder | Yes | Yes |
| Write via Dump | Yes | Yes |
| Special Function | Yes | Yes |
-
Item #:
153841
-
SKU:
XH-VVDI KEY TOOL MAX PRO
