SECO-LARM - SD-996C-NUQ - UNIVERSAL ELECTRIC DOOR STRIKE - METAL AND WOOD DOORS - FAIL-SAFE / FAIL-SECURE - 12/24VDC - UL LISTED

Item #:
192785
SKU:
SL-SD-996C-NUQ
Condition:
New
OEM:
SD-996C-NUQ

SD-996C-NUQ

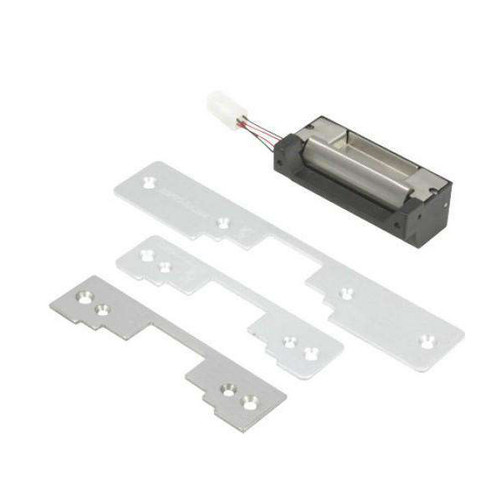

The SECO-LARM® Universal Door Strike can be used with virtually any cylindrical-locking system and can be configured for use in wood, aluminum, or metal doors. Included are three different-sized faceplates that can be easily installed on the strike to match the specific type of door frame.


UL 294 & UL 1034 Listed

Includes 3 faceplates for nearly any door type

Field-selectable for fail-safe or fail-secure operation

Field-selectable dual-voltage 12/24 VDC operation

Powered by a solenoid

Reversible non-handed design fits either right-hand or left-hand doors

Low profile: Strike is only 1-1/4" deep for use with hollow aluminum frames)


Operating Voltage: 12 or 24 VDC ±15%

Operation: Fail-secure or fail-safe

Current Draw: 280mA@12VDC, 140mA@24VDC

Jaw Strength: 2,000-lb

Operating Temperature: 14°F~113°F (-10°~45° C)

Operating Humidity: 85%± 15%

Dimensions - Aluminum 4-7/8" x 1-1/4" (124x32 mm)

Dimensions - Hollow Metal 4-7/8" x 1-1/4" (124x32 mm)

Dimensions - Wood 7-15/16" x 1-7/16" (202x37 mm)

  • Item #:

    192785

  • SKU:

    SL-SD-996C-NUQ

SECO-LARM - SD-996C-NUQ - UNIVERSAL ELECTRIC DOOR STRIKE - METAL AND WOOD DOORS - FAIL-SAFE / FAIL-SECURE - 12/24VDC - UL LISTED

$84.99
