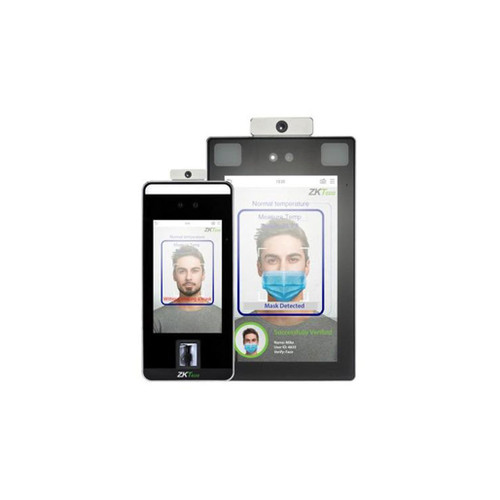

SpeedFace+ is a series of high-performance face, palm, and fingerprint recognition readers that additionally detect if a person has an acceptable body temperature and is wearing a protective mask. The SpeedFace+ embedded face & palm recognition sensor provides 100% touchless user authentication for various applications including Access Control, Time & Attendance, Visitor Management, Event Management & more.
Touchless Body Temperature & Mask Detection
In addition to providing face, palm, and fingerprint user authentication, SpeedFace+ can detect body temperature and the presence of a protective mask being worn by both registered and unregistered users. Users can be denied door access if a user-defined unacceptable body temperature or if no mask is detected.
The ability to quickly & accurately detect body-temperature and the presence of a mask is becoming increasingly important for airports, schools, commercial office buildings, and other public meeting areas.
People identified having unacceptable body-temperature and their supervisors can then take appropriate action. SpeedFace+ combines a powerful embedded thermal camera and ZKTeco's latest face and fingerprint recognition algorithms that are supported by an optimized dual-core processor. SpeedFace+ is unmatched in accuracy, matching-speed, and versatility. It provides advanced security and convenience, all on a single affordable device.
Features:
• User authentication read range up to 8 feet
• Body-temperature read range accurate up to +/- 0.3 to 0.5°
• Model SF1005+ stores & matches up to 6,000 face templates
• Model SF1005+ additionally stores and matches up to 10,000 fingerprint templates
• Model SF1008+ stores & matches up to 50,000 face templates
• Model SF1008+ stores & matches up to 5,000 palm templates
• Face verification with or without wearing a mask
• 5" or 8" programmable touchscreen display
• Intelligent energy-saving design
• Dual-lens IR & VL camera recognizes faces in both total darkness and bright sunlight
Specifications:
Capacity (model SF1005-V+) Faces: 6,000 | Fingerprints: 10,000 I Palms: 3,000
Capacity (model SF1008-V+) Faces: 50,000 I Palms: 5,000
Compatibility:
- Wiegand Input Panels;
- Wiegand Output readers;
- ZKBioSecurity Software;
- ZKTeco Security Relay Box (SRB)
Hardware:
- 900 MHz Dual Core CPU
- 512MB RAM/ 8G Flash
- 5" Touch Screen Display 2MP WDR Camera
- Distance Detection Sensor Reset Button &Tamper Switch
Access Control Interface:
- Lock Relay Output
- Alarm Output /Auxiliary Input Exit Button / Door Sensor
Special Functions:
- 0.3s Recognition Speed
- Liveness Detection
- Event Snapshot
Standard Functions:
Access Levels, Groups, Holidays DST, Duress Mode (password) Anti-Passback, Record Query Tamper Switch Alarm
Temperature Detection Accuracy: +/- 0.6 ° F* | Distance: up to 18 in
*ZKTeco USA recommends SpeedFace+ series readers to be placed in a climate-controlled environment.
Protective Mask Detection
Communication:
- TCP / IP
- RS485
- Wiegand Input / Output
- Wi-Fi
Additional Information:
Face Algorithm: ZKLiveFace 5.8
Working Temp: -40 to 140°F
Working Humidity: 20% - 93%
Storage Temp: 32 to 122°F
Storage Humidity: 20% - 90%
Net Weight: 1.5 lbs
Size (HxLxD): 8.9 x 5.6 x 1 inch
Power Operating Voltage: 12V DC ; Current Draw: < 2,000mA
Downloads:
SF1005-V+ Quick Start Guide
SF1008+ Quick Start Guide
SF1008+ User Manual
SF1005-V+ User Manual
SF+ Series FAQ
ZKBIOSECURITY SOFTWARE FOR BODY-TEMPERATURE DETECTION READERS: DOWNLOAD
Please note: this is a drop-ship item, please allow extra time for delivery
-
Product Type
Touchless Access
-
Item #:
103164
-
SKU:
ZK-SF1005-V+
