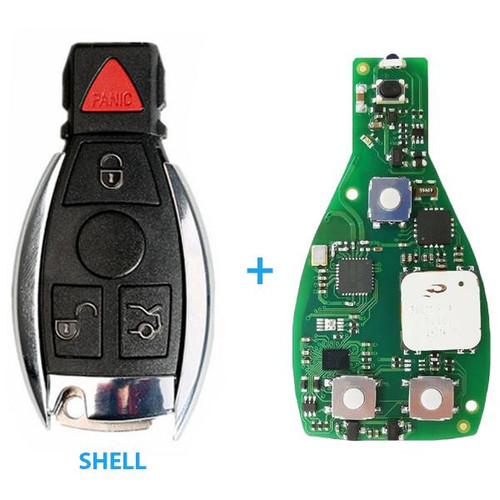

Xhorse Proximity Smart Key 315 / 433 MHz for Mercedes IR FBS3 Systems (PCB + SHELL)

Item #:
138581
SKU:
XH-XSBZ01EN-XH04
Condition:
Branded Aftermarket

Xhorse Proximity Smart Key PCB 315 / 433 MHz for Mercedes IR FBS3 Systems

Includes:

  • Mercedes FBS3 Proximity PCB - 1 pcs
  • Shell - 1 pcs

This PCB works as a replacement for Mercedes IR Prox Keys in E Class, C Class, S Class, ML Series, and GL Series with the EIS Modules listed below from 2009 to 2015 as long as they are FSB3 Systems and do not have the Push To Start Button on the vehicle's Shift Lever.  If the vehicle you are working with has the Push To Start Button on the Shift Lever, there is not currently a replacement Prox Key available for these vehicles.

  • This PCB Supports Manual Starting, Keyless Entry, and PTS (Push To Start) Functions
  • The PCB works with FBS3 Systems using these EIS Modules: W204, W207, W212, W164, W166, W221
  • 315 Mhz and 433 MHz Frequency Compatibility (Set In VVDI MB Software Or By Component Change)
  • A working battery is not required for IR Key Information writing

    PLEASE NOTE: shell comes separately from PCB, assembly will be required

    By default, the remote transmits at 433 MHz. If you need to change it to 315 Mhz, here is how you can do it:

    1. If you have VVDI MB tool, you can easily do it using VVDI MB software, just make sure it's updated to the latest version. Go to Read/Write Key, navigate to Other Function in the software interface, and select Set Key Remote Frequency in the dropdown.

    2. If you don't have VVDI MB, you can manually change the frequency by soldering/desoldering the FRE resistor on the PCB. With FRE Resistor installed, the Remote will transmit at 433 MHz, and with the FRE Resistor removed the Remote will transmit at 315 MHz.


    Xhorse VVDI MB FBS3 Smart Key - PCB Frequency Change with Key Shell Assembly & Disassembly:

    • Item #:

      138581

    • Button Config:

      Lock, Unlock, Panic

    • SKU:

      XH-XSBZ01EN-XH04

    Xhorse Proximity Smart Key 315 / 433 MHz for Mercedes IR FBS3 Systems (PCB + SHELL)

    $75.95
