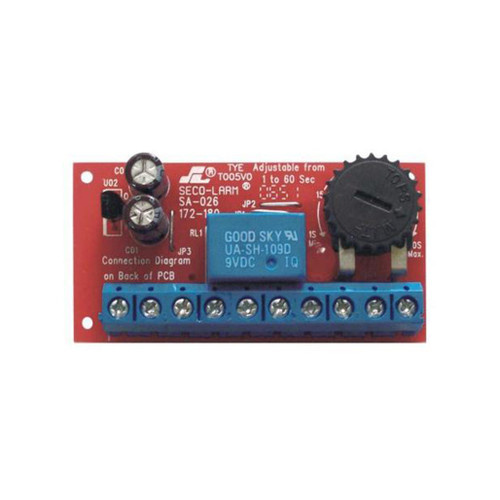

This timer module will extend the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable rotary pot. Operates on 12 to 24 volts AC or DC.
Can be Used with electrical locks which does not have a built-in time delay function.
-
Adjustable timer from 1~180 seconds via a
pot on board - NO/NC switch trigger
-
Compact design: 13/16"
x29/32" x5/8"(30x58x16 mm) -
Operating voltage: 12~24 volts
AC or DC -
Current: 2mA (standby),
75mA (active) -
Relay output: Form-C (SPDT)
via terminal blocks - Contact rating: 3A@24VDC
-
With built-in buzzer output
(100mA@24VDC) -
Includes double-sided
foam tape
-
Item #:
62813
-
SKU:
SL-SA-026Q
