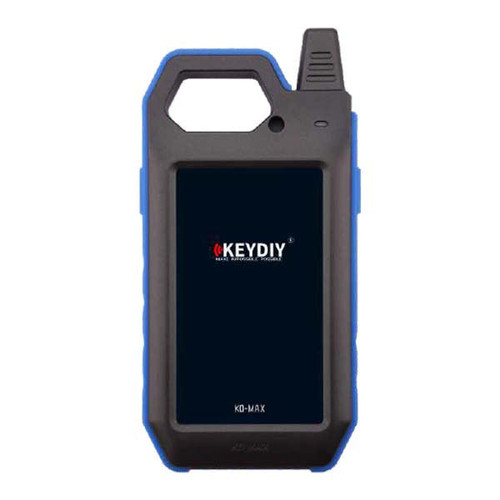

KD-MAX is a professional multi-functional smart device, essential for every locksmith. It works with an Android system, features built-in Bluetooth and Wi-Fi, comes equipped with a 5.0-inch LCD display screen. The user interface is clean, simple, and intuitive.
Product Functions:
- Car Remote Generating
- Remote Clone
- Dedicated Chip Generating
- Car Key Unlock
- Frequency Checking
- Garage Remote Generating/Clone
- Chip Recognition/edition/Decoding/Clone
- Remote Battery Leakage Detection
- IC/ID Card Recognition/Clone
- Battery Voltage Detection
Specifications:
- Battery Capacity: 3375 mAh
- Normal working hours: >8 hours
- Standby Time: >7 days
- Charging Current: 1500mA
- Luminance: >400nits
- Screen Resolution: 1280*720P
- Camera Resolution: 5 inch
- Screen Dimension: 800W
Hardware Ports Description:
TYPE-C Charging Port
Please use a 4.5-5.5V/2A charging plug to connect the TYPE-C cable to charge.
When charging is finished, the device will stop charging automatically to protect the battery.
PS2 Burning Port
1) Insert remote generate cable(6P cable) to generate remote;
2) Insert unlock cable to unlock remotes;
3) Insert unlock cable, enter the Battery Leakage Detection mode, connect the red cable to the positive side on the remote board, and black one to the negative side to detect battery leakage. ( Remove the remote battery first)
Voltage Detection Interface
Insert battery to the CR port( Pay attention to the positive and negative poles), enter Voltage Detection mode to detect battery voltage.
-
Product Type
KEYDIY
-
Item #:
105565
-
SKU:
KDY-MAX
