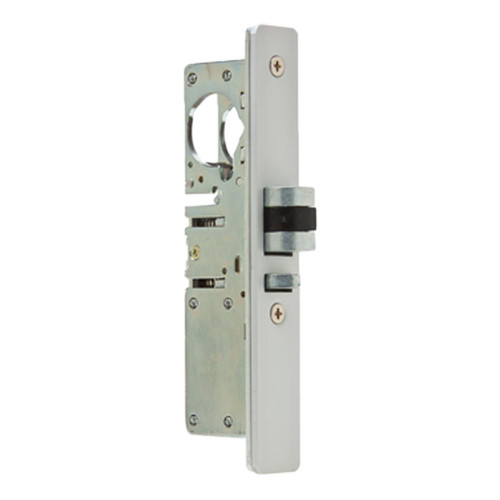

ILCO Storefront Deadlatch Mortise Lock 185 Series - RH - 1 1/2 Backset

Item #:
108262
SKU:
ILCO-451-F-4-RH-628-313
Finish:
Aluminum
Condition:
New

Storefront Deadlatch Mortise Lock 185 Series - 1 1/2 Backset, RH RIGHT Hand, 628 / 313 Aluminum & Duranodic Faceplates, LESS STRIKE

Ilco Deadlatch Mortise Lock 185 Series offers flexibility of traffic control for buildings that require free entrance during specific times and exit only at other times. A reverse turn of the key, while the bolt is retracted, retains the bolt for two-way traffic.

Interchangeable with the 185 Series Deadbolts.

Includes 2 Faceplates - 628 / 313 Aluminum & Duranodic.


Features:

  • Steel case with corrosion resistant plating
  • Zinc latch with Delrin insert for quiet operation
  • Auxiliary latchbolt feature prevents “loiding” or jimmying with knife
  • Accepts standard 1-5?32” (29.36 mm) diameter mortise cylinder
  • Supplied pre-handed, but field reversible
  • Aluminum faceplate measures 1”x 6-7?8” (25.4 mm x 174.63 mm)
  • Available with one or two faceplates or individually packaged without faceplates
  • Sets can be purchased with choice of 8 strike set combinations
  • Strike sets include dust box and mounting plates
  • Cycle testing exceeds ANSI Grade 1 standards

Specifications:

  • Backset:  1 1/2 (38.1 mm)
  • Case: Steel with corrosion resistant plating. Depth varies by backset
  • Latchbolt: 5?8”W x 1-1?2”L (15.88 mm x 38.1 mm), field reversible handing

Downloads:

Cylinders-Storefront-Door Hardware & Exit Devices



  • Item #:

    108262

  • SKU:

    ILCO-451-F-4-RH-628-313

ILCO Storefront Deadlatch Mortise Lock 185 Series - RH - 1 1/2 Backset

$20.91
