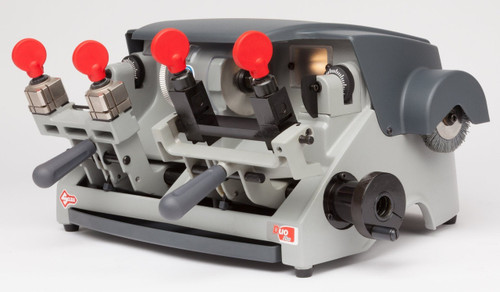

Duo Plus is an innovative, dual carriage machine that cuts cylinder, vehicle and cruciform keys (left-hand carriage) as well as bit, double bit, flat style (safe, safety deposit, mailbox) and special keys such as Abus® and Abloy® type keys (right-hand carriage).
Features:
- The tilting mechanism makes it possible to make excellent flares on bit and double bit keys
- Innovative carriage release system for free-moving or regulated carriage
- Four-sided revolving clamps on the left side for edge cut style
- Two/three sided revolving clamps on the right for Abus® and Abloy® type keys
- Cut-out switch that triggers automatically should power fail
- LED lighting illuminates work area
- Large swarf tray
Technical Specs:
- Power Supply: 120V-60Hz, Rated Current 2.7 Amps
- Motor: .25HP, single phase, 1700 rpm
- Cutter: BC0605XXXX / BC0606XXXX both are HSS
- Cutter Guide: BJ0928XXXX / BJ1229XXXX
- Brush: BJ0929XXXX 3/8" (10 mm) Nylon
Dimensions:
- Width: 20.1" (510 mm)
- Depth: 17.7" (450 mm)
- Height: 11" (280 mm)
- Weight: 50.7 lbs. (23kg)
Part Number BH0058XXXX, D736249ZB
-
Item #:
28261
-
SKU:
ILCO-DUO-PLUS
