HUDSON - HPC

HPC SA-7 Stamp Aligner

Item #:
44826
SKU:
HPC-SA-7
Condition:
New

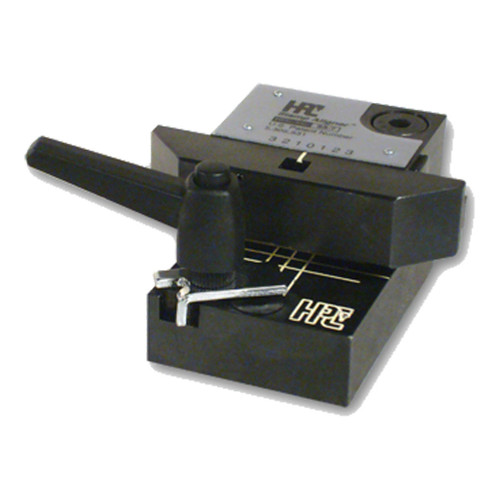

Stamp Aligner™
Part: SA7

The Stamp Aligner™ solves the problems locksmiths have always had while stamping numbers on keys. Crooked numbers, stamps flying across the room, and numbers that go up, down, and all around are now things of the past. The Stamp Aligner™ holds the stamps so that figures may be stamped on keys in a straight line with even spacing between characters.

The Stamp Aligner™ has 7 detents to stamp up to 7 characters and 3 rows evenly on a standard key. A key is placed onto the bottom part of the Stamp Aligner™ and secured in place. The top part of the Stamp Aligner™ is moved into one of the spacing indexes. The stamp is placed into the square hole, over the spot where the key is to be stamped. The stamp is held securely in place for it to be struck by a hammer. Spacing is clearly defined by a spring-loaded detent built into the device.

Each character stamped on the key will be straight, spaced evenly, and aligned perfectly. When the stamps are all struck with the same force, the result is a key that looks like it was factory stamped. Letter and Figure Stamps are sold separately.

.25" (6.35mm) square hole fits
1/8" (3mm) and 3/32" (2.5mm) character stamps.

Click Here To Download Stamp Aligner instructions



Secure Key on Stamping Block:

...and Stamp:



You get Perfect Alignment!



View it in action:

  • Item #:

    44826

  • SKU:

    HPC-SA-7

HPC SA-7 Stamp Aligner

$219.99
