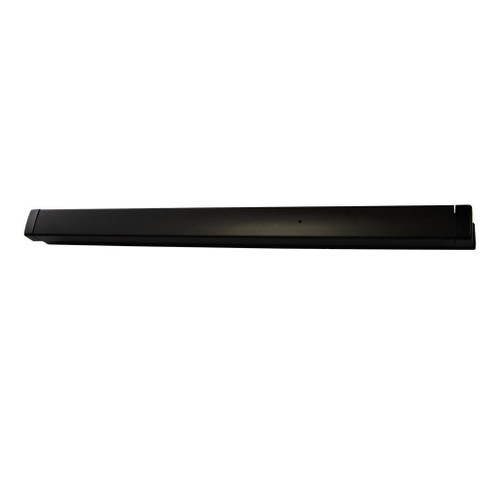

Adams Rite 8400 Series Narrow Stile Mortise - Life-Safety - Dark Bronze Anodized 313 Faceplate - Flat - 1-1/8-Inch Backset - LHR - 36 inches - 313 Push bar

Item #:
125272
SKU:
ARITE-8420-38236
Condition:
New

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a lifesafety exit device with mortise locking solution.
Designed for use in single door applications.

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2

ARITE-8420-38236
MODEL: 84 Life-Safety
FACEPLATE FINISH: 2 - Dark Bronze Anodized 313
FACE SHAPE: 0 Flat, bevel, radius
BACKSET: 1-1/8"
DOOR HANDING: LHR
PUSH BAR FINISH: 2 - Dark Bronze Anodized 313
DOOR OPENING WIDTH: 36 inches

Materials:
Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing:
Specify handing and bevel if applicable.
Push bar Length:
Standard sizes dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Backset:
31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm]. Fits standard cutout used for the Adams Rite 4900 Heavy Duty Deadlatch on narrow stile aluminum doors.
Door Thickness:
Suits 1-3/4" [44.5 mm] standard. The device can be modified for thicker doors using Thick Door Kit available separately, or for thermal doors using Thermal Door Kit available separately.
Stile Width:
Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection:
2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.
Dogging:
Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.

RELATED PRODUCTS:
ELECTRIC STRIKE: 7100/7101, 7110/7111, 7130/7131, 7140 Electric Strikes, 7400/7401, 7410/7411, 7430/7431, 7440 Electric Strikes
TRIM: 3080, 3080E Series Entry Trim, 3090-150, A100 Series Keyless Entry
