Andromeda Research Labs AR32 Locksmith Eeprom Reader Kit #1
WHAT’S INCLUDED IN THE KLS-1 KIT
HARDWARE

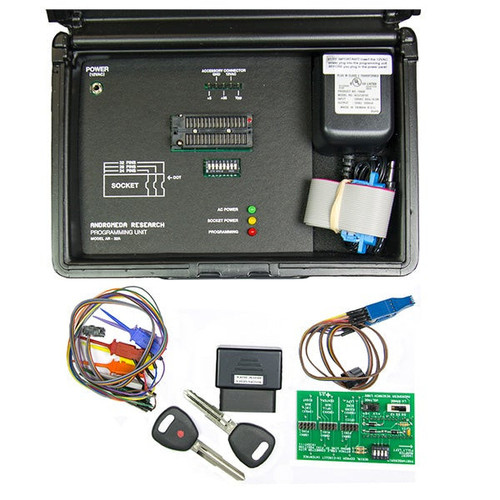

The KLS-1 kit includes the following items:
1 - EPROM+ programming system
2 - ASERSM1A surface mount serial eeprom adapter
3 - Surface mount clip with cable and plug (#ASOIC8)
4 - Surface mount probe set with cable and plug (#SMP8),
5 - Clonable Honda RED and BLACK keys required to reflash a RED key Honda,
6 - RESYNCHRONIZATION BLOCK required to synchronize a reflashed Toyota or Lexus small black box immobilizer to the vehicle ECU.
Included Documentation
1. SERIAL EEPROM TUTORIAL - 93C56 (AUTOMOTIVE VERSION) This tutorial (directed at automotive applications)
describes how to use the system by providing a series of hands-on exercises using an actual 93C56 serial eeprom. Although this
tutorial covers more than just locksmith applications, it will teach you to use the additional capabilities of your KLS-1 package.
IMPORTANT: Perform the exercises in this tutorial before you begin working with any modules.
2. USING THE ASERSM1A SERIAL EEPROM IN-CIRCUIT INTERFACE ADAPTER
This document describes how to use the ASERSM1A adapter, including how the plug is attached and the purpose of the voltage selection slide switchs.
IMPORTANT: Read this document and become familiar with the purpose of the slide switchs as it will allow you to work suc-
cessfully with most parts in-circuit and confirm a “GOOD READ” of eeprom data. Also note the position of the black cable plug
when installed on the adapter: The BROWN wire is always on the right, below the arrow.
3. EEPROM+ PROGRAMMING SYSTEM USER MANUAL
This is the operation and user manual provided with the standard EEPROM+ system. Read this manual for installation and use information.
Please note: AR32 requires 32 Bit Windows XP computer with a Serial Port. see PANASONIC TOUGHBOOK CF-29
-
Product Type
Programmer
-
Item #:
45569
-
SKU:
ARL-KLS-1
-
Number Of Buttons:
0
