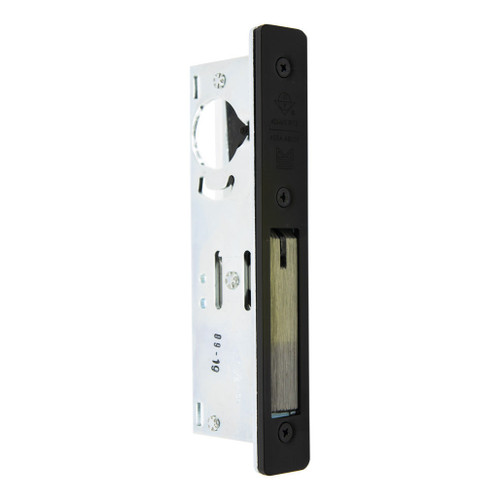

The MS1850S Series MS Deadlock utilizes a laminated stainless steel bolt to provide maximum security for a single leaf narrow stile aluminum door.
Faceplate: Flat
Backset: 1-1/8"
Bolt Shape: Straight Bolt
Handing: Non-Handed
Finish: 313 Dark Bronze
Function: A huge bolt of laminated stainless steel, nearly 3" long, activated by an uncomplicated pivot mechanism, has made the basic MS1850S Series MS® Deadlock the standard of the narrow stile aluminum door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be.
Operation: 360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
Features:
Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Steel with corrosion-resistant plating.
Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to
defeat any hacksaw attack, including rod-type “super” hacksaws.
MS1850S: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw.
Standard Package: Individually boxed with faceplate and mounting screws. Strike plates, cylinders and/or thumbturns available separately.
Download: MS1850S, MS1850S-X5X Catalog Page
-
Item #:
124396
-
SKU:
ARITE-MS1850S-310-313
