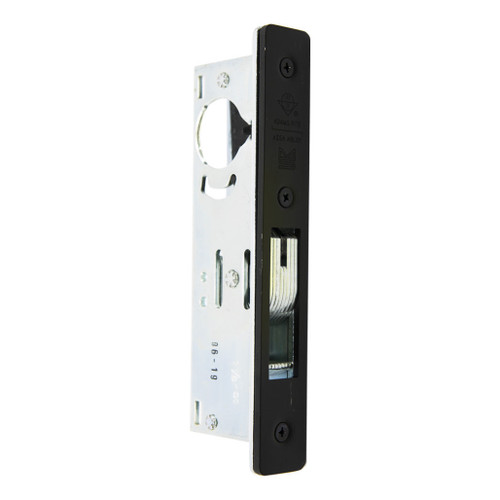

The MS1850S Series MS Deadlock utilizes a laminated stainless steel bolt to provide maximum security for a single leaf narrow stile aluminum door.
Faceplate: Flat
Backset: 1-1/8"
Bolt Shape: Hookbolt
Handing: Non-Handed
Finish: 313 Dark Bronze
Function: A huge bolt of laminated stainless steel, nearly 3" long, activated by an uncomplicated pivot mechanism, has made the basic MS1850S Series MSยฎ Deadlock the standard of the narrow stile aluminum door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be.
Operation: 360ยฐ turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MSยฎ cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
Features:
Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Steel with corrosion-resistant plating.
Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to
defeat any hacksaw attack, including rod-type โsuperโ hacksaws.
MS1850S: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw.
Standard Package: Individually boxed with faceplate and mounting screws. Strike plates, cylinders and/or thumbturns available separately.
Download: MS1850S, MS1850S-X5X Catalog Page
-
Product Type
Storefront Deadlock
-
Item #:
124366
-
SKU:
ARITE-MS1850S-350-313
