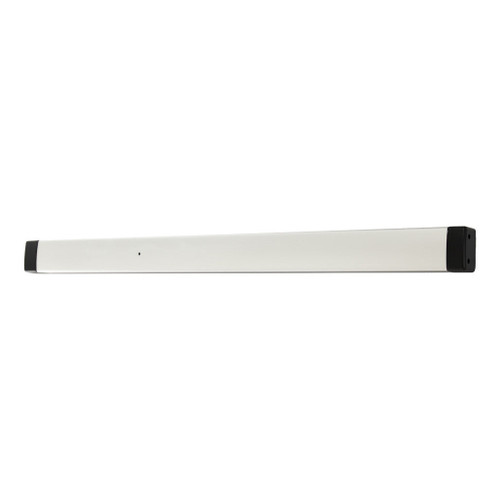

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.
Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3-2008 Grade 1
ANSI/BHMA A156.3-2014 Grade 2
ARITE-8801-36-628
MODEL: 88 Life-Safety
PUSH BAR FINISH: 01 Clear Anodized 628
DOOR OPENING WIDTH: 36 inches
Materials:
Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing:
Device is non-handed.
Push bar Length:
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Door Thickness:
Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width:
Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection:
2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.
Dogging:
Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
RELATED PRODUCTS:
TRIM: 3080, 3080E Series Entry Trim, 3090-150, A100 Series Keyless Entry
Downloads:
8800 Series Catalog Page
-
Item #:
124382
-
SKU:
ARITE-8801-36-628
