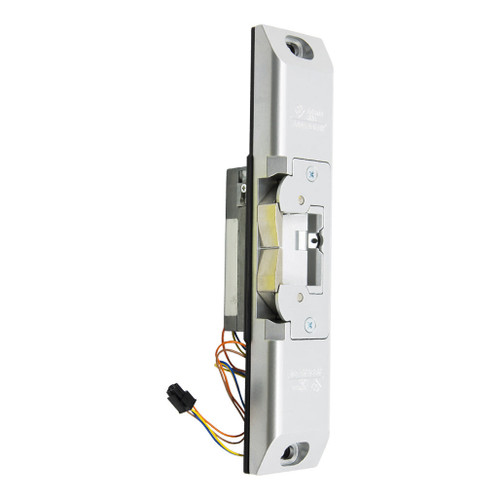

74R1 UltraLine Electric Strike for Rim Exit Devices with Pullman Type Latchbolts.
74R1 Electric Strike is designed for rim exit devices with 3/4" [19.1 mm]
Pullman latchbolts. For use in aluminum, hollow metal or wood applications.
Open electrically under 25 lbs [11.3 kg] of preload. Preload is the pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.
Finish: 130 (To match 628 Clear Anodized)
Function
These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail-secure mode. The strikes release electrically with up to 25 lbs of door preload. The single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing the door to open without the actuation of the exit device.
Certifications
ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1
Case
74R1: 1-13/32" x 3-3/8" x 1-1/16" deep
[35.7 mm x 85.7 mm x 27 mm deep]
Strike Opening
Bolt retaining keeper is stainless steel.
74R1: 5/8" x 1-7/16" x 9/16" deep [15.9 mm x 36.5 mm x 14.3 mm deep].
Strike accepts Pullman latch of exit devices without deadlocking bolts.
Faceplate
Not separate
74R1: 1-3/4" x 9 x 11/16" [44.5 mm x 228.6 mm x 17.5 mm]
Latchbolt Projection
74R1: 3/4" [19.1 mm]
Standard Package
Individually boxed with mounting plate shims, mounting screws, and installation instructions.
Voltage
Field selectable to match the power source of 12/24 VDC. VA7400-16VDC voltage
adapter required when using 16 VDC power, available separately. Equipped with a
quick connect plug-in type connector.
Current Draw
.44A at 12 VDC
.46A at 16 VDC*
.23A at 24 VDC
*Requires 16 DC adapter (P/N VA7400-16VDC)
Fail Safe | Fail Secure
Field selectable fail safe/fail secure
RELATED PRODUCTS: EX89 Pullman Rim Exit Device
