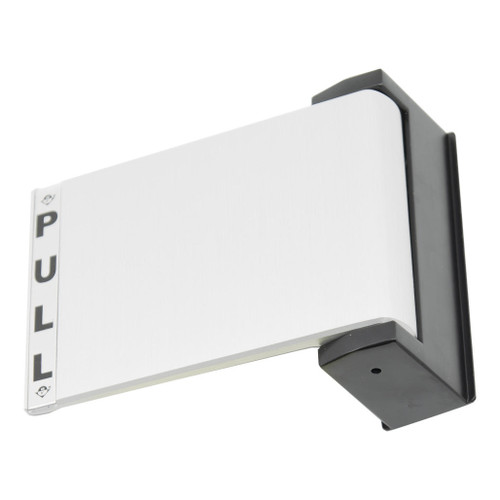

The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.
Model: 4590
For 4300/4500/4900 Deadlatch Series
Operation: PUSH TO RIGHT (Outside of right hand door or inside of left hand reverse)
Door Thickness: 1-3/4"
Finish: 628 Clear Anodized
Function:
Deadlatch paddle is an alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch.
Features:
Paddle: Extruded aluminum.
Escutcheons: Zinc alloy with a black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder set screw, the plug is also rigidly tied to escutcheon by hardened steel pins.
Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500, or 4900 Series Deadlatches include cam plug.
Click Here To Download 4590 Deadlatch Paddle Catalog Pages
-
Item #:
124218
-
SKU:
ARITE-4590-04-00-628
