The 4560 Series Deadlatch Handles easily unlock the 4300, 4500 and 4900 Series Deadlatches. These handles fit solidly into the cylinder hole of Adams Rite deadlatches.

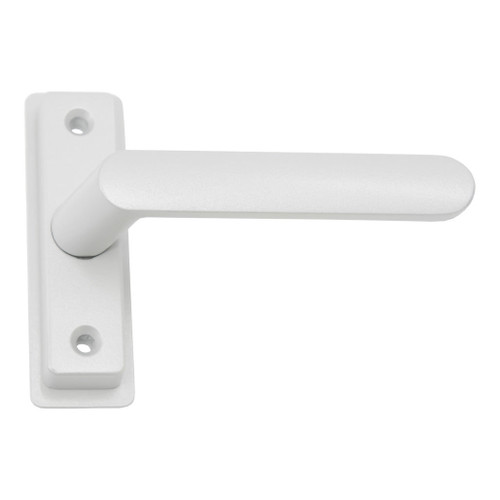

4568 handles feature an ADA compliant lever shaped to fit the hand.
Finish: 628 Clear Anodized
HANDING: RH or RHR
DOOR THICKNESS: 1-3/4" to 2"
For 4300, 4500, 4900 Series Deadlatches
Features:
Handle of cast aluminum.
ADA compliant lever is shaped to fit the hand.
Escutcheon: A 1/4" [6.4 mm] square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
4568, 4569 use the same 1-3/8" x 4"[34.9mm x 101.6mm] escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs (one becomes a “spare” once handing is given).
Cam Plug: Secured in latch body by cylinder set screw, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
Standard Package: Individually packaged with mounting hardware and cam plug handed LH or RH as specified.
Ordered for left hand (LH) or right hand (RH) door, but is easily reconfigured in the field to accommodate either door swing.
Standard handles are for 1-3/4" [44.5 mm] thick doors.
Compatible with the following products:
MS+1890 Deadlock/Latch
2190 Series Interconnected Deadbolt/Deadlatch (4568, 4569 only)
4300 Electrified Deadlatches, 4510, 4530, 4900, 4920AN Series Deadlatches.
Click Here To Download 4560 Series Catalog Pages
-
Item #:
124437
-
SKU:
ARITE-4568-601-130
