Adams Rite

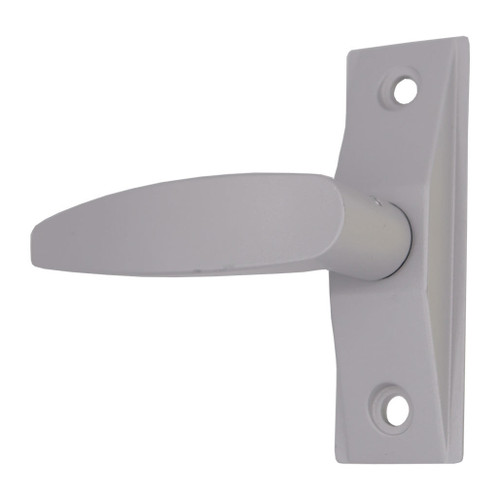

Adams Rite 4560 Lever Handle For 4300, 4500, 4900 Series Deadlatches - LH or LHR - 1-3/4 to 2 Inch - Clear Anodized

Item #:
124198
SKU:
ARITE-4560-501-130 See Legacy SKUs
Condition:
New

The 4560 Series Deadlatch Handles easily unlock the 4300, 4500 and 4900 Series Deadlatches. These handles fit solidly into the cylinder hole of Adams Rite deadlatches.

4560 handle features an ADA compliant lever shaped to fit the hand.

Finish: 628 Clear Anodized
HANDING: LH or LHR
DOOR THICKNESS: 1-3/4" to 2"
For 4300, 4500, 4900 Series Deadlatches

Features:
Handle of cast aluminum.

ADA compliant lever is shaped to fit the hand, with a concave thumbrest portion that tends to keep knuckles and thumb safely away from the jamb, even on a short backset narrow stile.
Escutcheon: A 1/4" [6.4 mm] square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
4560 use the same sloping 1-3/8" x 4" [34.9 mm x 101.6 mm] escutcheon, designed to match the clean lines of a narrow stile door.

Cam Plug: Secured in latch body by cylinder set screw, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.

Standard Package: Individually packaged with mounting hardware and cam plug handed LH or RH as specified.

Ordered for left hand (LH) or right hand (RH) door, but is easily reconfigured in the field to accommodate either door swing.
Standard handles are for 1-3/4" [44.5 mm] thick doors.

Compatible with the following products:
MS+1890 Deadlock/Latch
4300 Electrified Deadlatches, 4510, 4530, 4900, 4920AN Series Deadlatches.

Click Here To Download 4560 Series Catalog Pages

  • Product Type

    Storefront Lever Handle

  • Item #:

    124198

  • SKU:

    ARITE-4560-501-130

Adams Rite 4560 Lever Handle For 4300, 4500, 4900 Series Deadlatches - LH or LHR - 1-3/4 to 2 Inch - Clear Anodized

$32.99
