Adams Rite

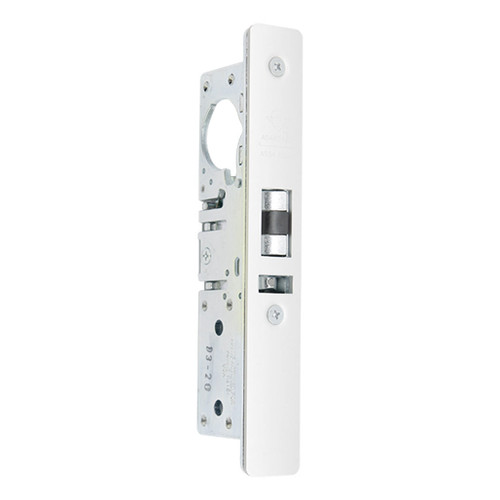

Adams Rite 4511 Standard Deadlatch, Radius Faceplate, 31/32" Backset, LH/RHR, 2-5/8" Strike - Clear Anodized

Item #:
125275
SKU:
ARITE-4511-25-201-628
Finish:
Aluminum
Condition:
New

Adams Rite 4511 Standard Duty Deadlatch provides flexible traffic control during and after business hours.

Radius Faceplate
31/32" Backset
Left/Right Hand Reverse
Mortised (4902) 2-5/8" Strike
Flat/Standard Jamb
628 Clear Anodized

Function: The 4511 Series Standard Duty Deadlatch offers flexibility of traffic control
during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape. They do not, however, provide the same maximum security level as the MS Deadlock.

Operation: Turn key or operate handle or paddle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any
standard mortise cylinder with MS® cam, available separately. Lock accepts any standard 1"" [25.4 mm] length, 1-5/32"" [29.4 mm] diameter mortise cylinder
with MS cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.


  • Item #:

    125275

  • SKU:

    ARITE-4511-25-201-628

Adams Rite 4511 Standard Deadlatch, Radius Faceplate, 31/32" Backset, LH/RHR, 2-5/8" Strike - Clear Anodized

$52.99
