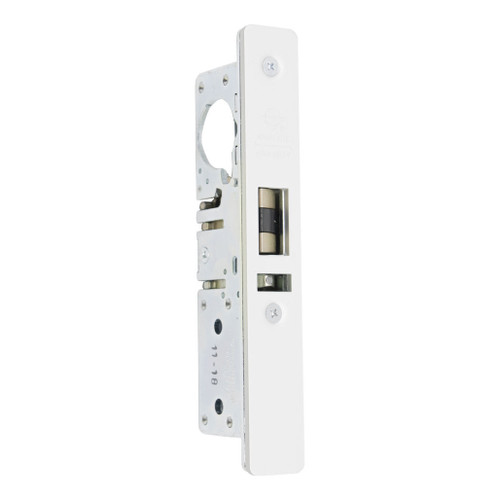

Adams Rite 4510 Standard Duty Deadlatch provides flexible traffic control during and after business hours.
Flat Faceplate
1-1/8" Backset
Left/Right Hand Reverse
Mortised (4902) 2-5/8"
Flat/Standard Jamb
628 Clear Anodized
Function: The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control
during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape. They do not, however, provide the same maximum security level as the MS Deadlock.
Operation: Turn key or operate handle or paddle to retract spring-loaded latchbolt. To hold bolt retracted, push it in and secure by reverse turn of key. Lock accepts any
standard mortise cylinder with MS® cam, available separately. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder
with MS cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
Download: 4510 Deadlatch Catalog Page
-
Item #:
124234
-
SKU:
ARITE-4510-35-201-628
