The ZN074 set is developed and designed by the Abrites Team to aid in ECU reading and writing procedures on the bench.
This set is designed to work together with the ZN051 Distribution Box and cannot function without it.

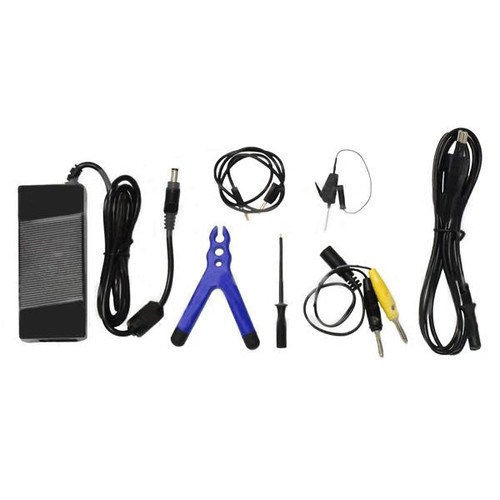

Contents:
- Power Supply 14V 4A - used as a charger for ECU, DSBox and AVDI on bench. (EU Plug 110-220V)
- Connecting cable Power Supply -> DSBox (banana plug)
- Boot Test Probe - used for easier connection to the ECU’s Boot pin
- 2-footer probe positioner - used for holding the Boot test probe in place, making it hands-free
- Micro-Pincer Hook (opening 0.76mm) - used for BGA ball hook up, when the Boot pin of the ECU PCB is not accessible
- Boot probe connection cable (2mm banana plug, len 0,5m) - used for connecting the Boot test probe or the Micro-pincer hook to the DSBox
- 2mm banana socket - used for soldering to the Boot cable, coming from the DSBox, in order to connect the Boot probe connection cable.
-
Item #:
57869
-
SKU:
ABRITES-ZN074
