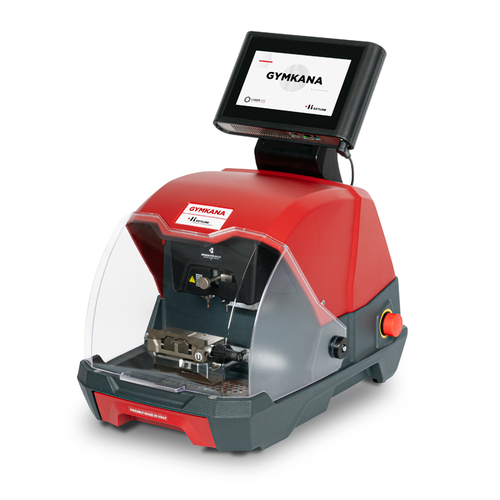

GYMKANA 994 Key Machine
- Automotive high security and double-sided edge cut
- Cuts by code or duplicates
- All-in-one self-aligning universal jaw
- One cutter and tracer
- No adapters or tip stops needed
- Faster software boot-up
- Intuitive software
- Faster software loading, intuitive screen prompts
- Software updates easily done via USB memory stick or Internet
- Universal clamp
- Z-axis allows for new self-aligning universal clamp (works for 994 Laser A/B/C/D/F/G clamp applications)
- Optional clamp for 6-cut Tibbe OPZ09523B
- No tip stops or adapters needed
- Universal cutter and tracer
- One cutter and tracer used for high security and double-sided edge cut applications
- 2mm carbide cutter and tracer are easy to change out and replace
- Ergonomic design
- User-friendly design features large safety shield and mounting bracket for console or tablet
- Chip tray easily removes for chip disposal
- Versatile
- Perfect for shop or mobile operations
- Android software app also available for maximum versatility
Specifications:
- POWER: 110/60Hz
- MOTOR: Brushless
- CUTTER SPEED: 3000-8000 rpm (variable)
- KEY READING: Electric contact
- LIGHTING: LED illuminated cutting bay
- USER INTERFACE: 7” color touch screen, 16:10, resolution 800 x 480 px, VGA
- ELECTRONIC EQUIPMENT: Mainboard with iMX6 CPU, 1 GB RAM, 4 GB memory
- WEIGHT: 42 lbs. DIMENSIONS: 12” W x 18” D x 12” H (machine); 8” W x 6” D x 3” H (console)
INCLUDED PARTS:
- Universal Cutter - V037 - Part# RIC07786B
- Universal Tracer - T08 - Part # RIC11110B
- Universal U Clamp - Part # OPZ11114B
- 2 year warranty
- Software updates included for the first 2 years
Replacement parts and accessories:
- B9980 Mounting Kit for Gymkana 994
- RIC10952B Calibration Template for Gymkana 994
- RIC05274B V012 Cutter 1.5mm for Versa / Gymkana 994
- RIC05350B T00 Calibration Tracer for Versa / Gymkana 994
- 4GB USB Memory Stick For Software Update For GYMKANA 994, 994 Laser, Ninja Total
- RIC07786B V037 2.0 mm Universal Cutter For GYMKANA 994
- RIC10714B T07 Universal Tracer for Versa and Gymkana 994
- OPZ10260B V CLAMP Volkswagen For Gymkana 994, Ninja Laser, 994 Laser
- Gymkana 994 Shield
- H Jaw (tibbe 6-Cut keys)
-
Product Type
Key Machine
-
SKU:
KL-GYMKANA-PROMO
-
Item #:
410897
