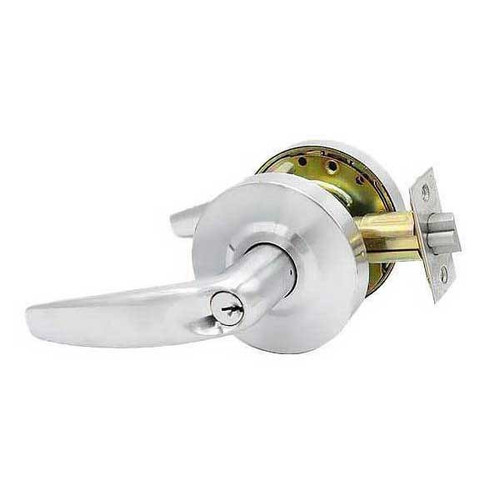

The Premium Commercial Grade 2 Series gives you the performance and quality of a Grade 1 lockset at a Grade 2 price. This lock always needs a key to unlock the lock on either side. Perfect for commercial applications in Office Buildings, Schools, Universities, Hospitals and much more.
| Lock Function | ANSI F87 Asylum / Institutional lock |
| Handing | Non-Handed |
| Door Thickness | 1-5/8” to 1-7/8” |
| Cylinder | Solid Brass 6-Pin Removable Double Cylinder Schlage C Keyway Standard with 2 Brass Keys |
| Backset | 2 3/4" (70 mm) standard, Optional 2 3/8" (60 mm) available |
| Latch | 11-096 Deadlatch 1/2" (13 mm) throw |
| Hsg diameter | 1" (25 mm) |
| Levers | Rigid Lever - Pressure cast zinc |
| Thru Bolts | Removable thru-bolts fit existing preps like Schlage, Best, Yale, Corbin Russwin, Sargent, Arrow and more |
| Strike | 10-025 1 3⁄16", 1 3⁄8" (30 mm, 35 mm) 1 1 ⁄4"x 47 ⁄8" (32 mm x 124 mm) ANSI |
| Finish | 626 - 26D - Satin Chrome |
| Certifications | Exceed ANSI A 156.2 Grade 2 locked lever torque requirement. Tested to exceed 4,000,000 cycles, ANSI Grade 2 requirement BHMA Certified UL 3-hour Fire Rated |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
| Keyed Alike | Up to 10 KA10 |
-
Item #:
203055
-
SKU:
KEN-KCL261-SC-IN-001
-
Item:
Product
-
Origin:
UHS Hardware
-
Sku:
KEN-KCL261-SC-IN-001
-
Shipping Group:
UHS Hardware
