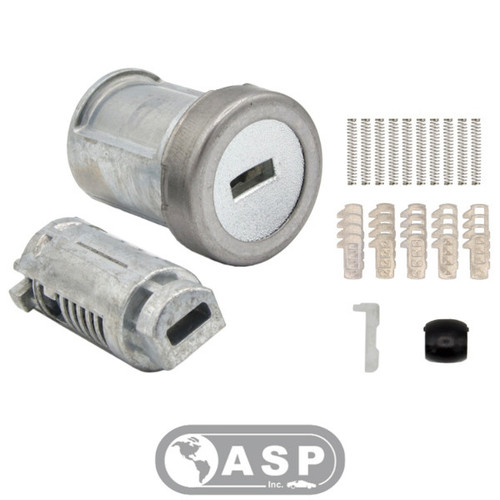

This is the uncoded service pack of the 8-cut flat face ignition lock cylinder used on many different models since 2000, beginning with the 2000 Focus, and continuing through some 2019 models. There have been at least 5 different original Ford part numbers that are used over the years that are similar in design, slightly different appearance but very similar in function. We have researched this in depth including comparing the lock cylinder application to the switch and housing applications to see if that many different variations are really necessary. We have found that all of these different Ford part numbers can be consolidated into one part number which we now offer as part no. C-42-197.
One obvious difference between the different Ford original part numbers is that some come with a large black retaining clip that attaches to the end of the plug, and some do not have this clip. Some of the switch and housing applications are designed so that a lock with this clip attached cannot be inserted. For housings that are designed to accept the lock with the clip attached, it seems that the clip serves no purpose except for an interlock against the lock being forced out of the housing. This is important on some of the designs which the plug does not need to be turned in order to depress the retaining pin that holds the cylinder assembly in the housing.
Our C-42-197 does not include the large retaining clip that fits onto the end of the plug. But it does have an active retaining pin which cannot be depressed without the plug being turned, so the importance of the retaining clip on the end of the plug for security is reduced. The old clip may be reused and placedon the end of the plug of C-42-197.
We have actually installed our C-42-197 on switch and housing assemblies tied to all of the different variations of Ford original part numbers of this type of lock. As such we are confident that our C-42-197 will successfully replace all of these Ford variations, even though it may look slightly different from the old lock removed from the car.
C-42-197 is the non-sidebar design lock, which even Ford parts and service has used to replace the failure prone sidebar locks originally installed on the Focus and Escape from 2001-07. C-42-197 also includes tumblers and springs for assembly. Ford part numbers that are known to be serviced by C-42-197 are as follows.
AU5Z-11582-A
5S4Z-11582-BB
5F9Z-11582-BA
2L2Z-11582-B
XS4Z-11582-AC
Other Ford part numbers may have been used through the years that have been superseded into one of the above numbers.
The year and model applications of C-42-197 are as follows:
FORD:
Econoline 2016-18 (except locks with turn knob)
Edge 2007-14
Escape 2001-07 (except locks with turn knob)
Escape 2008-12
Expedition 2003-19
Explorer 4-door 2001-18
Explorer Sport Trac 2008-10
F-150 2004-14
F-250, F-350 Super Duty 2008-16
Five Hundred 2005-07
Flex 2009-19
Focus 2000-11
Freestyle 2005-07
Fusion 2006-12
Mustang 2005-14
Taurus 2008-19
Heavy Trucks 2014-18 (except locks with turn knob)
LINCOLN:
Aviator 2003-05
Mark LT 2006-14
MKX 2007-14
MKZ 2007-13
Navigator 2003-17
Zephyr 2006
MERCURY:
Mariner 2005-07 (except locks with turn knob)
Mariner 2008-11
Milan 2006-11
Montego 2005-07
Mountaineer 2001-10
Sable 2008-09
MAZDA
Tribute 2001-06 (except locks with turn knob)
2016-2018 Ford Econoline (except locks with turn knob)
2007-2014 Ford Edge
2001-2007 Ford Escape (except locks with turn knob)
2008-2012 Ford Escape
2003-2019 Ford Expedition
2001-2018 Ford Explorer 4-door
2008-2010 Ford Explorer Sport Trac
2004-2014 Ford F-150
2008-2016 Ford F-250, F-350 Super Duty
2005-2007 Ford Five Hundred
2009-2019 Ford Flex
2000-2011 Ford Focus
2005-2007 Ford Freestyle
2006-2012 Ford Fusion
2005-2014 Ford Mustang
2008-2019 Ford Taurus
2014-2018 Ford Heavy Trucks (except locks with turn knob)
2003-2005 Lincoln Aviator
2006-2014 Lincoln Mark LT
2007-2014 Lincoln MKX
2007-2013 Lincoln MKZ
2003-2017 Lincoln Navigator
2006-2006 Lincoln Zephyr
2005-2007 Mercury Mariner (except locks with turn knob)
2008-2011 Mercury Mariner
2006-2011 Mercury Milan
2005-2007 Mercury Montego
2001-2010 Mercury Mountaineer
2008-2009 Mercury Sable
2001-2006 Mercury Tribute (except locks with turn knob)
-
Item #:
110652
-
SKU:
ASP-C-42-197
