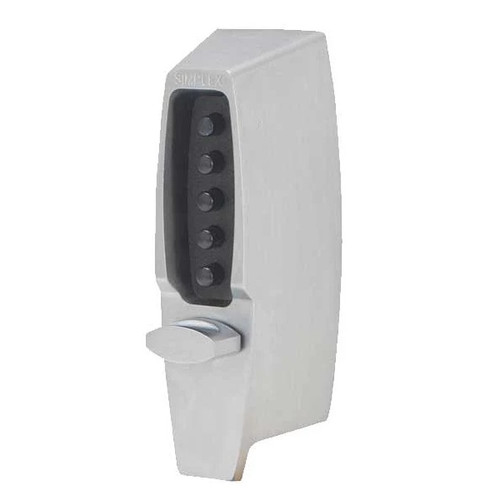

The Simplex - 7102 Mechanical pushbutton deadbolt lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked.
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Deadbolt—must be manually re-locked
- Number of Codes: Single access code—one easy-to-manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Field reversible Handing
- Push button Access
| Construction | All metal cast front housing; force-resistant, clutch-protected exterior thumb-turn |
| Locking Device | 1" (25 mm) Tubular Deadbolt, flat front face plate 2¾" (70 mm) backset |
| Numeric Keypad | Vandal resistant, solid metal push buttons |
| Handing | Field reversible |
| Finish | Satin Chrome 26D (626) |
| Backset | 2¾" (70 mm) backset |
| Latch | 1" (25 mm) tubular deadbolt |
| Minimum Stile Recommended | 4” (102 mm) |
| Strike | Flat deadbolt strike plate |
| Door Preparation | 1⅜" (35 mm) diameter through bore 1" (25 mm) diameter cross bore ¾" (19 mm) through bore 2 x ¼" through bores |
| Door Thickness | 1⅜” (35 mm) to 2¼” (57 mm), wood or metal |
| Durability | Weather resistant |
| Certification | BAA/NAFTA Certified |
| Warranty | 1 year manufacturer warranty |
-
Item #:
334996
-
Product Type
Lever
-
SKU:
DMK-7102-26D-41
