SD-7983-SSHQ

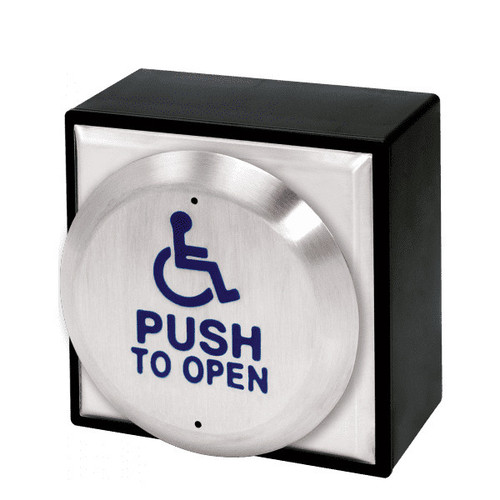

The ENFORCER 4.5" Round Push Plate is designed for easy, accessible entry and exit through public area doors. The 4.5" Round Push Plate features a large stainless steel button with the International Symbol of Access and "PUSH TO OPEN" engraved for clear and easy visual and tactile identification. Featuring an operating life of over 100,000 cycles and a surface-mount back box for flexible mounting options, the ENFORCER 4.5" Round Push Plate is the perfect solution for reliable, secure, and accessible entry and exit for schools, hospitals, nursing homes, apartments, and other high-density public spaces.
Large, stainless steel plate button for public area use
International Symbol of Access and "PUSH TO OPEN" engraved for easy visual and tactile identification
Use with SECO-LARM maglocks for an easily installed, high-security system
Contact rating: 15A@125/250 VAC
Momentary SPDT switch
Operating life: Over 100,000 cycles (factory tested)
Surface-mount plastic back box allows for quick installation, flexible mounting, and easy RF (wireless) upgrade
Weight: 16.5-oz (467g)
Switch Type: NO/NC/COM (SPDT)
Contact resistance: 50mĪ© Max.(initial)
Dimensions Faceplate: 4-1/2"x4-1/2"x3/4" (115x115x19 mm), Back box: 5-1/8"x5-1/8"x2-1/8" (130x130x54 mm)
Flammability rating: UL94HB
Operating Temperature: 32Ā°~221Ā° F (0Ā°~105Ā° C)
Material Faceplate: Stainless Steel, Back box: ABS Plastic
Operating Life: 100,000 Cycles (factory tested)
Contact Rating: 15A@125/250 VAC
-
Product Type
Access Control
-
Item #:
192831
-
SKU:
SL-SD-7983-SSHQ
