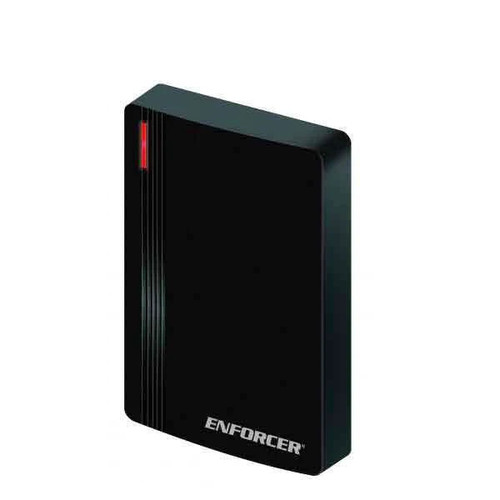

PR-2125-PQ
9~24 VDC Operation
Low current draw – 50mA max.
Built-in buzzer for external alarm input
Multicolor status LED
EM 125 kHz
10 User proximity cards included
Outdoor rated – IP66
Extreme cold tolerance to -40° F (-40° C)
Wiegand output reader – EM 26 bits
Sturdy black ABS plastic housing
Operating Voltage: 9~24 VDC
Current Draw - Standby: 20mA@12VDC
Current Draw - Active: 50mA@12VDC (max.)
Outputs - Wiegand: EM – 26 bits
Card type: 125kHz EM
Card read range: 0~2" (0~5 cm)
IP Rating IP66
Enclosure material: Black ABS plastic
Operating temperature: -40°~140° F (-40°~60° C)
Operating humidity: 10~98% non-condensing
Dimensions: 1-7/16"x2-3/4"x11/16" (37x70x17 mm)
Weight: 1.7-oz (48g)
-
Product Type
Access Control
-
Item #:
192788
-
SKU:
SL-PR-2125-PQ
