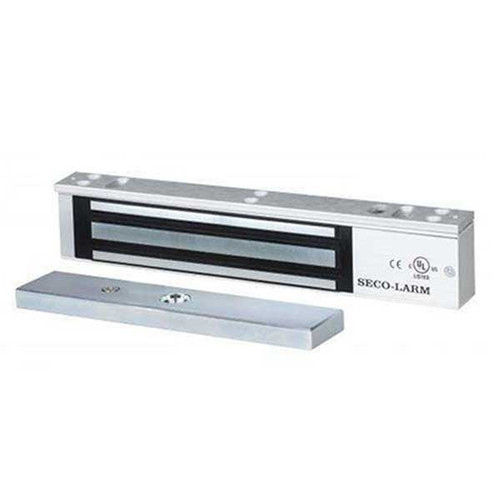

E-941SA-600
Anodized aluminum housing (US 28)
12 or 24 VDC (selectable)
No residual magnetism
Adjustable mounting bracket
MOV surge protection
Complete mounting hardware for typical installations
Detachable face plate
UL and ULC listed
CE listed
LIFETIME LIMITED WARRANTY
RoHS compliant
Holding Force: 600-lb (272kg)
Operating Voltage: 12 or 24 VDC±10%
Current Draw: 500mA@12VDC, 250mA@24VDC
Operating Temperature: 14º ~ 131º F (-10º ~ 55º C)
Electromagnet Dimensions: 9-7/8"x1"x1-5/8" (250x25x42 mm)
Armature Dimensions: 7-1/4"x1/2"x1-1/2" (185x12x38 mm)
Case Shipping Weight: 47-lb (22kg)
Weight: 4-lb 6-oz (2kg)
-
Product Type
Access Control
-
Item #:
192810
-
SKU:
SL-E-941SA-600
