E-931CS22RFCQ
For monitoring a driveway or use as an entrance indicator
No wiring required between the sensor and speaker; when tripped, the sensor wirelessly transmits to any programmed speaker
Weatherproof IR photoelectric beam sensor for outdoor use
Speaker makes "ding-dong" or siren sound if beam is interrupted
Speaker volume can be adjusted or turned off
When in siren mode, sounding time is adjustable from 3~30 seconds
Connect additional speakers to the sensor wirelessly (one speaker included)

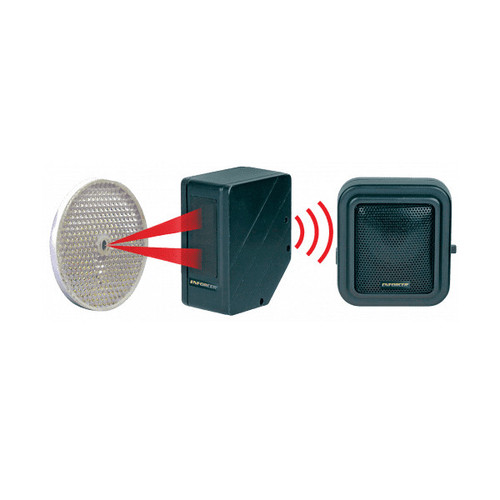

Includes the following:
- Weatherproof wireless reflective sensor (Tx)
- Wireless speaker (Rx)
- Reflector
- Two power adapters
- Three mounting brackets: One each for the sensor, reflector, and speaker
Type: Wireless Weatherproof Entry Alert System
Operating Frequency: 433.92 MHz
Operating voltage: Sensor & Speaker- 12VDC (adapter included)
Range: Sensing- Up to 22ft (7m), Wireless- Up to 328ft (100m)
Operating Temperature: 32º~122º F (0º~50º C)
Current Draw: Sensor- Active: 20mA, Standby: 5mA; Speaker- Active: 100mA, Standby: 25mA
Light Source: IR LED
Speaker Volume: 0~90 dB
Alarm Time Range: 3~30 s (Adjustable)
Dimensions: Sensor- 3-1/4" x 2-9/16" x 1-1/2" (82 x 65 x 37mm), Speaker- 3-1/4" x 2-15/16" x 1-9/16" (83 x 75 x 40mm), Reflector- 2-3/8" x 2-1/16" x 3/8" (60 x 52 x 9mm)
Speaker Output: Chime / Off / Alarm (selectable)
-
Product Type
ENTRY ALERT SYSTEM
-
Item #:
192790
-
SKU:
SL-E-931CS22RFCQ
