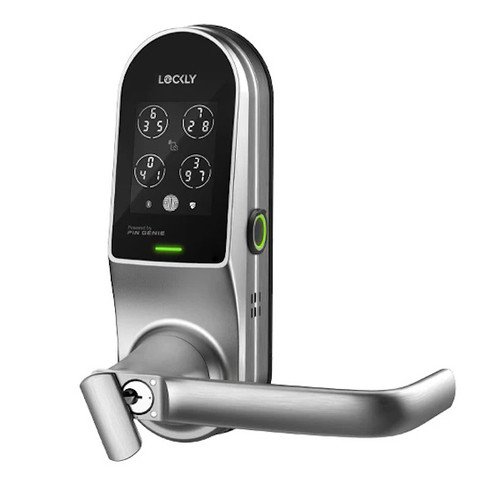

Lockly Guard™ Latch 679L is a premium built lever smart lock providing round-the-clock protection for your doors. Enjoy Wi-Fi connected convenience, patented PIN Genie digital touch screen with shuffling keypad numbers for the ultimate in PIN security, 3D biometric fingerprint reader and RFID reader that stores up to 999 RFID access. The lock offers the administrator the ability to grant access remotely and issue digital keys with specific timed durations, even if the lock isn't connected to the internet, all from your smartphone.
Features:
- Advanced 3D biometric fingerprint reader for instant recognition and unlocking, improving speed and accuracy with every touch; can store up to 99 fingerprints; trusted by the Lockly community with 100M+ access granted.
- Patented hack-proof PIN Genie® touchscreen digital keypad prevents codes from being guessed by randomly shuffling PIN number locations. Stores up to 49 Access Codes.
- Fast and easy access with MIFARE RFID cards, fobs, tags or stickers; with entry logs and access permissions that can be personalized and monitored via Lockly app or LocklyOS. Stores up to 999**
- Smart home ready with Secure Link Wi-Fi Hub included. Remotely lock and unlock your door or simply check status from anywhere using the Lockly mobile app or through your voice control assistant.
- Using the Lockly App or LocklyOS™, securely Air Transfer fingerprints and access code user profiles from one Lockly to another lock; effortlessly unlock, monitor, and review history logs, grant access using eKeys, eBadges, or Offline Access Codes anytime anywhere.
- Universal fit / easy DIY installation. Fits right or left swing doors 1 3/8" to 2" thick. Easy to install using common household tools, all mounting hardware included.
- Premium quality / lifetime warranty*. Made with high quality materials designed to withstand freezing, and hot weather conditions. IPX4, ETL, UL10(B)/(C), CAN/ULC-S104, NFPA 252 & FBC certified. Backed with Lifetime technical support* & Limited 2-year mechanical, finish and electronics warranty.
- Powered by 4 AA batteries (included), lasts up to 10 months on regular use, low battery warning can be viewed on your app, backup physical keys and backup power options included in case of emergencies.
- Works with LocklyOS™ a full property management system for one or a thousand Lockly devices, designed to allow you to view and control where, when, and by whom your property’s being accessed from anywhere in the world. LocklyOS** is premium service provided by LocklyPRO, subscription is required.
Electronic Specifications
| Access Codes | Stores up to 49 PIN access codes |
| RFID/Fob key Access | Stores up to 999 MiFare RFID/Fob |
| Fingerprint Access | Stores up to 99 biometric fingerprints |
| Remotely Shareable Temporary Access | Unlimited access via the LocklyPro commercial app or LocklyOS |
| Visual and Audible | Exterior: LED (Red, Green) Interior: LED (Red) Configurable Lock/Unlock Audio Indicator |
| Communication Standards | BLE 4.2, Wi-Fi 2.4 GHz, RF433.92 MHz Advanced Encryption Standard (AES), 256-bit |
| Gateway Communication Range (Networked Solution) | Up to 98' (30m) BLE Up to 197' (60m) Wi-Fi Up to 164' (50m) RF433.92MHz Unobstructed open environment |
| Command Response | Responds to command from host in less than 3 seconds when linked to Lockly Wi-Fi Hub 0.2S on Fingerprint Recognition |
| Connectivity Options | LocklyPro Commercial app, LocklyOS, Matter Controller ALL in real-time communication |
| Available Signal Status | Battery Status via App Open/Close Door Status Bluetooth Connectivity Indicator Sensor LED (Red/Green) |
| Battery Life | AA Alkaline Batteries x 4 Up to 1 Year (offline mode) Up to 10 months (regular use with App & Sensor) |
| Operating Temperature | -4°F to 151°F (-20°C to 66°C) |
| Operating Humidity | 0 - 95% non-condensing |
Credential Specifications:
| Credential Technologies | RFID Card (13.56 MHz) BLE (2.4 GHz) Wi-Fi (2.4 GHz) Capacitive Sensor Patented PIN Genie Keypad |
| Standards | ISO 14443 |
| Maximum Read Range | RFID: up to 0.79" BLE: up to 98" (30m) Wi-Fi: up to 197" (60m) |
| RFID/Fob Compatibility | MiFare S50 |
| Mobile Compatibility | LocklyPro Commercial App BLE 4.2 LocklyOS, Matter |
Mechanical Certifications:
| Handing | Field Reversible |
| Materials | Premium Zinc Alloy chassis and escutcheon 45 mins Fire tested / Salt Resistant (200hrs test) |
| Door Thickness | 1-3/8" - 2" (35mm - 50mm) |
| Backset | Adjustable 2-3/8" or 2-3/4" (60mm or 70mm) 1" x 2-1/4" round corner faceplate |
| Strike | Latchbolt: 1-1/8" x 2-3/4" round corner. Dust box included |
| Bore | 2-1/8" (54mm) diameter Bore hole 1" (25mm) diameter latch hole |
| Physical Keys | SC1 Re-keying compatible, 2pcs included |
Certifications/Warranty
| Certification | UL 10B | UL 10C, FBC, ROHS, FC, ADA Compliant, NFPA 252 | CAN/ULC-S104, Intertek 5026048 |
| Warranty | Lifetime 24/7 Technical Support 2-years Limited Mechanical & Finish 2-years Limited Electronics |
What's Included:
- Latch 679L
- Installation Guide
- User Manual
- Welcome Card
- AA Alkaline Batteries x 4
- Drilling Template
- Activation Card
- RFID Key Tag x 3
- Physical Key x 2
- Secure Link Wi-Fi Hub
- Wired Door Sensor
- Bolt Assembly
- Mounting Plate
- Fixing Screws
- Strike Plate
Downloads
Lockly Smart Phone App -- iPhone Here / Android Here
-
Item #:
340395
-
Product Type
Door Lock Parts
-
SKU:
LKY-PGD679LWSN
