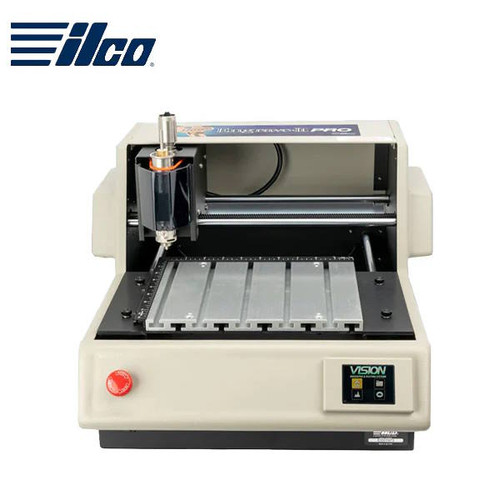

The Engrave-It ™ XP offers the capability to engrave multiple keys and IC cores as well as individual keys, pet tags, luggage tags, brass plates, small signs, ID plates, name badges, plaques and more. The Engrave-It XP allows the operator to select either “diamond drag” or rotary cutter engraving styles. Using the same powerful software utilized by the Engrave-It PRO, the operator can quickly select from a menu list of common tasks or create their own custom settings.
Affordable, durable and versatile, the Engrave-It XP delivers consistent, professional results.
- Engraves Single or multiple items
- Sequential numbering
- Over 1100 fonts, and 5000 clip art styles with the ability to add more
- Automatic or manual text sizing option
- High quality engraving for presentation plaques, etc.
- Fast engraving speeds at 3” (50.8 mm) per second
- Software simplifies common tasks and offers versatility for advanced projects
- Aluminum T-Slot Table Style
- Multi-mat eliminates the need for double stick tape, clamps, etc.
- Adjustable edge guides for easy alignment
- Red laser tracking pointer for job preview
- PC is required for operation
- Holders sold separately
- Made in the USA
Accessories Included in Kit: USB Memory stick (holds Engrave-It XP software, Installation Guide, Tutorial and User Manual), Two diamond tip cutters, Ethernet to USB Adapter, Quick lock vise and much more.
Choice of Engraving Style: Operator may select “diamond drag” or rotary cutter style depending on the material being engraved.
Key Holders: Over 100 different trays that hold from 12 to 24 key blanks (depending on specific key) Contact your Ilco distributor for details on developing a custom key holder.
Specialty Holders: Over 40 specialty holders available for engraving on cylinders, IC cores, padlocks, pet tags brass plates and more. Visit our web site for current list of available key and specialty holders.
Technical Specifications:
| Software: | Vision Expert |
| Movement: | Stepper motor controlled engraving head positioning |
| Interface: | Ethernet |
| Speed: | 0.0002” (.005 mm) / 3” (76.2 mm) second |
| Warranty: | 1-Year Limited Warranty |
| Power: | 110/220 5 Amp, 1/7 HP Spindle Motor |
| Dimensions: | 17.5”W x 17.5”D x 9.5”H (444.5 mm W x 444.5 mm D x 241.3 mm H) |
| Computer Specs: | A customer supplied PC is required to operate the Engrave-It PRO. Recommended system requirements — CPU-dual core 2 GHz (or faster) CPU, 40GB Hard Drive, 2GB RAM, Windows 7 (32 or 64 bit) operating system Minimum system requirements — Single Core 2 GHz CPU, 5GB Hard Drive, 1GB RAM, Windows XP, Windows Vista or Windows 7 (32 or 64 bit) operating system. |
-
Item #:
246590
-
Product Type
Key Machine
-
SKU:
ILCO-BA0195XXXX
-
Drop Ship Options:
Drop Ship Only
