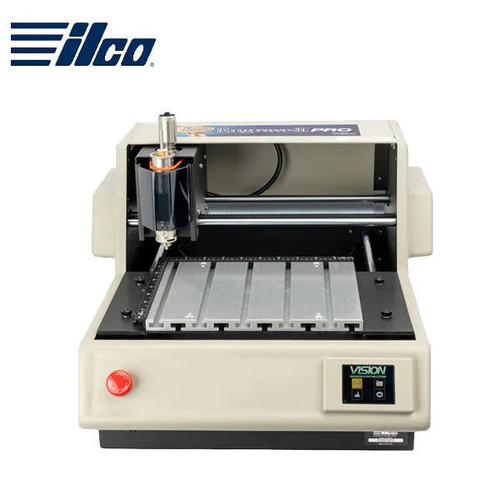

The Engrave-It™ PRO is simple to operate and designed to provide maximum versatility for engraving a broad range of items in both the lock shop and institutional environment. This unit is capable of marking keys, typical lock cylinders (including IC), padlocks, ID plates/tags, laminated plates/tags, and much more!* The Engrave-It PRO lets the operator select either “diamond drag” or rotary cutter engraving styles. Using powerful engraving software (with a customer-supplied PC) the operator can quickly select from a menu list of common tasks or create their own custom settings.
Accessories Included in Kit: USB Memory Stick (holds Engrave-It Pro software, Installation Guide, Tutorial, and User Manual), Two diamond tip cutters, Ethernet to USB Adapter (to allow connection to machine and internet), Deep vise, Quick lock vise, and much more.
Choice of Engraving Style: Operator can select either “diamond drag” or rotary cutter style.
User-Friendly Software Interface
- Sequential numbering
- Custom lettering for marking keys, popular lock cylinders, and other items
- Capable of “fine” Engraving for presentation plaques, etc.
- Variety of fonts and marking styles
- Various clamping options are provided to secure items being engraved
- New V-Touch multi-functional touchscreen
- Red laser pointer for easy job set-up
- Vision PRO 10 “Expert” software package
Key Holders: Over 100 different trays that hold from 12 to 24 key blanks (depending on specific key) Contact your Ilco distributor for details on developing a custom key holder.
Specialty Holders: Over 40 specialty holders are available for engraving on cylinders, IC cores, padlocks, pet tags brass plates, and more. Visit our website for a current list of available key and specialty holders.
Technical Specifications:
| Software: | Vision Expert 10 |
| Movement: | Stepper motor-controlled engraving head positioning |
| Interface: | Ethernet |
| Speed: | X-Y Axis = .0002” 5”/second |
| Warranty: | 1-Year Limited Warranty |
| Power: | 110/220 2 Amp |
| Dimensions: | 19”W x 22”D x 14.5”H Weight: 45lbs |
| Shipping Dimensions: | 27”W x 22”D x 19”H Weight: 60lbs |
| Computer Specs: | A customer-supplied PC is required to operate the Engrave-It PRO. Minimum system requirements — Single Core 2 GHz CPU, 5 GB Hard Drive, 1GB RAM, Windows 7 or higher (32-bit or 64-bit) Operating System. Recommended system requirements — Dual Core 2.0 GHz (or faster), 40 GB Hard Drive, 2 GB RAM, Windows 7 (32-bit or 64-bit) |
-
Item #:
246490
-
Product Type
Key Machine
-
SKU:
ILCO-BA0123XXXX
-
Drop Ship Options:
Drop Ship Only
