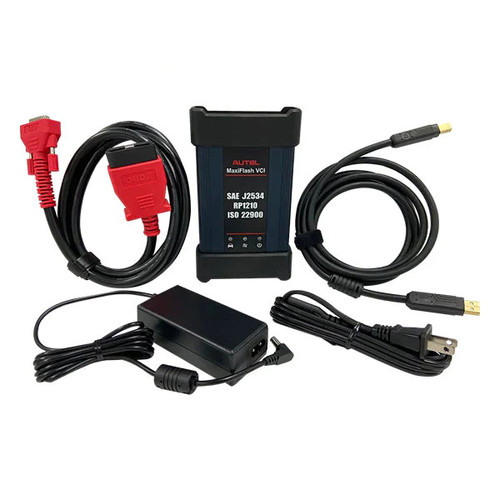

The MaxiFlash VCI Kit, compatible with the MaxiSYS MS909 advanced diagnostic tablet, includes a bluetooth-enabled vehicle communication interface (VCI), a J2534-compliant pass-thru programming device. This VCI Kit also includes an Autel Main Cable V2.0, USB 2.0 cable, and AC/DC adapter. The MaxiFlash VCI supports CAN FD, 4 CAN Channels, D-PDU, IS 022900-1 and ISO 22900-2 protocols and is RP1210 compliant. The MaxiFlash VCI can be use with Windows computer with applicable OE subscription for vehicle module programming and when connected to the MaxiSYS MS909 tablet for compatible BMW and Mercedes vehicle module programming. Includes one-year Warranty.
Included:
- Maxiflash VCI J2534 Pass-thru Programming Device
- Main Cable V2.0
- USB 2.0 Cable
- AC/DC Adapter
Compatible with the MaxiSYS MS909 diagnostic tablet
Use with windows PC for vehicle module programming, J2534-1 & J2534-2 compliant
Bluetooth-enabled communication interface
Support CAN FD, 4 CAN Channels, and DoIP
Supports D-PDU, IS O22900-1 & ISO 22900-2
Program BMW & Mercedes from MaxiSYS MS909 Tablet
RP1210 compliant
Includes One-Year Limited Warranty
| Communications | Bluetooth V2.1 + EDR USB 2.0 Wi-Fi 5G Ethernet |
| Wireless Frequency | 5 GHz |
| Input Voltage Range | 12V DC to 24 V DC |
| Supply Current | 170mA at 12 V DC 100 mA at 24 V DC |
| Operating Temperature | 0° C to 50° C |
| Storage Temperature | -20° C to 60° C |
| Dimensions (L x W x H) | 168.6 mm x 99.7 mm x 38 mm |
-
Product Type
Programmer
-
Item #:
200654
-
SKU:
AUT-MFVCIKIT
