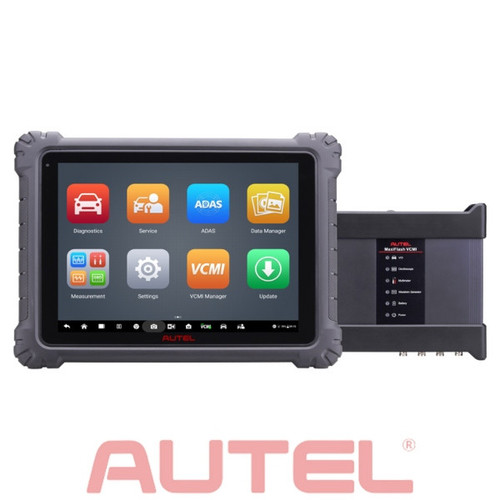

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.9 inch touchscreen tablet with Android 7.0 OS powered by an Octa core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built in memory, all powering the new split screen multi application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step by step repair guidance. The new MaxiFlash VCMI functions as a 4 channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.
• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first hand troubleshooting of diagnostic bugs and errors
• One stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud based Data Manager saves customer and vehicle records, scanner data and technician notes+ Operating System Android 7.0 Processor Samsung Exynos8895V octa core Processor (2.3GHz Quad core Mongoose + 1.7GHz Quad core A53) Memory 4GB RAM & 256GB On board Memory Display 12.9 inch TFT LCD with 2732 x 2048 resolution & capacitive touch screen Connectivity WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB) Camera Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel Sensors Gravity Accelerometer, Ambient Light Sensor (ALS) Audio Input/Output Microphone Dual Speakers 3 Band 3.5 mm stereo/standard headset jack Power and Battery 18000mAh 3.8 V lithium polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C Input Voltage 12V/3A Adapter Operating Temp. 0 to 50°C (32 to 122°F) Storage Temperature 20 to 60°C ( 4 to 140°F) Dimensions (WxHxD) 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") Weight 2.18kg (4.81 lb.) Protocols DoIP, PLC J2497, ISO 15765, SAE J1939, ISO 14229 UDS, SAE J2411 Single Wire Can (GMLAN), ISO 11898 2, ISO 11898 3, SAE J2819 (TP20), TP16, ISO 9141, ISO 14230, SAE J2610 (Chrysler SCI), UART Echo Byte, SAE J2809 (Honda Diag H), SAE J2740 (GM ALDL), SAE J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE J1850 PWM (Ford SCP), SAE J1850 VPW (GM Class2)
• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
• Exceptional OE Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first hand troubleshooting of diagnostic bugs and errors
• One stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud based Data Manager saves customer and vehicle records, scanner data and technician notes+ Operating System Android 7.0 Processor Samsung Exynos8895V octa core Processor (2.3GHz Quad core Mongoose + 1.7GHz Quad core A53) Memory 4GB RAM & 256GB On board Memory Display 12.9 inch TFT LCD with 2732 x 2048 resolution & capacitive touch screen Connectivity WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB) Camera Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel Sensors Gravity Accelerometer, Ambient Light Sensor (ALS) Audio Input/Output Microphone Dual Speakers 3 Band 3.5 mm stereo/standard headset jack Power and Battery 18000mAh 3.8 V lithium polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C Input Voltage 12V/3A Adapter Operating Temp. 0 to 50°C (32 to 122°F) Storage Temperature 20 to 60°C ( 4 to 140°F) Dimensions (WxHxD) 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") Weight 2.18kg (4.81 lb.) Protocols DoIP, PLC J2497, ISO 15765, SAE J1939, ISO 14229 UDS, SAE J2411 Single Wire Can (GMLAN), ISO 11898 2, ISO 11898 3, SAE J2819 (TP20), TP16, ISO 9141, ISO 14230, SAE J2610 (Chrysler SCI), UART Echo Byte, SAE J2809 (Honda Diag H), SAE J2740 (GM ALDL), SAE J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE J1850 PWM (Ford SCP), SAE J1850 VPW (GM Class2)
-
Product Type
Programmer
-
Item #:
154578
-
SKU:
AUT-MSULTRA
-
Drop Ship Options:
Do Not Drop Ship / Order
