AUTEL-MA60020T

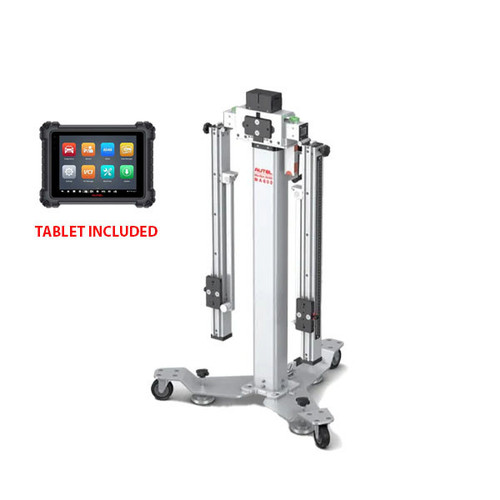

The Autel MA60020T LDW2.0 Mobile Package includes the MA600 Mobile Calibration Frame, ADAS Software Upgrade compatible with MaxiSYS tablet for calibration of LDW systems. Includes Pattern Board, Wheel Clamps and Laser Crossbar; Includes DIGITALADAS add-on for faster frame placement with one person; Includes LDW Target Case; Includes Target Board Holder, MS909 Tablet and Includes a One-Year Limited Warranty.
MA600T LDW 2.0 Features:
- Portable - Easily foldable frame create freedom to calibrate faster in many locations
- Precise - The new distance laser and accessories provide a quicker leveling process with vehicle for Millimeter Ruler Accuracy
- Adjustable - Fine-tuning nobs to easily
- Precise millimeter-level accuracy with multiple laser positioning and measurement tools
- Portable flexible and easy for storage: quickly folded for transport
- Affordable modular frame assembled with accessory tools for calibration
- Affordable easy to move
- Includes One-Year Limited Warranty
Package Includes:
- Autel MA600 Mobile Calibration Frame
- Pattern Board, Wheel Clamps and Laser Crossbar
- ADAS Upgrade Software, compatible with MaxiSYS MS909 Tablet
- DIGITALADAS Add-on for Faster Frame Placement with One Person
- LDW Patterns/Targets for Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
- LDW Target Case
- Target Board Holder
Pattern Board Specifications:
- Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
- Rated Power: 24V, 3A
- Laser Rated Power: 3V, 25mA
- Laser Battery Type: AA 2x1.5V
- Calibration Frame Working Temp: 0℃ to 50℃
- Calibration Frame Storage Temp: -20℃ to 60°C
- Laser Class: Class 2
- Certification: CE, FCC, RoHS
MS909 Features:
- 9.7’’ Touchscreen (1536 x 2048)
- Android 10.0 OS
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
- Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
- Code-Related Technical Service Bulletins (on select vehicles)
- License Plate Reader
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)
- Includes Cables, Scope Connectors, Carrying Case
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 15000mAh – 3.8V lithium-polyment battery - 8hrs Continuous Use
- 16MP Rear Camera Autofocus with Flashlight & 5MP Front Camera
- 1-year update subscription and warranty (Both can be renewed)
Compatible With:
- Alpha Romeo
- Audi
- GM
- Honda/Acura
- Hyundai/Kia
- Infiniti
- Lexus
- Mazda
- Mercedes
- Mitsubishi
- Nissan
- Subaru
- Toyota/Lexus
- VW
-
Product Type
Programmer Accessories
-
Item #:
200994
-
SKU:
AUT-MA60020
