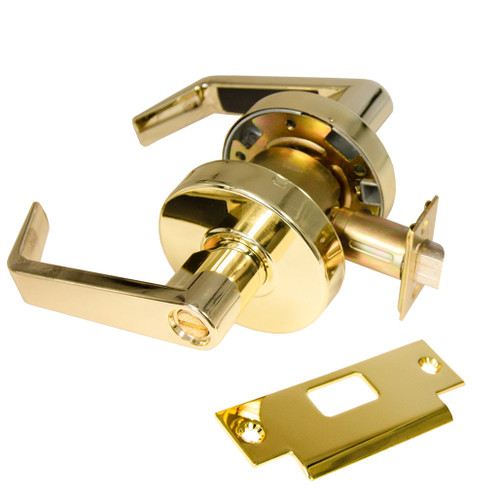

The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
Features
Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
Latch Front: 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. RL Roses are wrought brass 3-3/8" (85.73mm) diameter. Total projection from face of door is 2-1/2" (63.5mm).
Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*
Handing: Non-handed
Thru-bolts: Removable thru-bolts standard on RL Series
-
Item #:
192026
-
SKU:
ARROW-XRL02-SR-03
