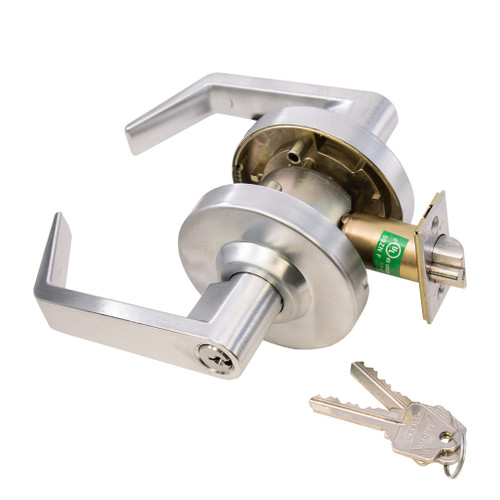

Arrow’s QL Series Grade 1 cylindrical lockset featuring a freewheeling lever for abuse resistance and the QL Lever features a two screw install for quick and easy installation.
Features:
Door Preparation: Requires standard 2-1/8" (53.97mm) bore through door.
Backset: 2-3/4" (69.85mm)
Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2 17/32" ( 4.5mm).
Freewheeling Lever
Handing: Non-handed
Strike: 4-7/8" ANSI (123.83mm)
Cylinder: Solid brass 6 pin, Schlage CS keyway, SFIC and SIC
Keys: 2 brass keys
-
Item #:
192014
-
SKU:
ARROW-XQL87-SB-26D
