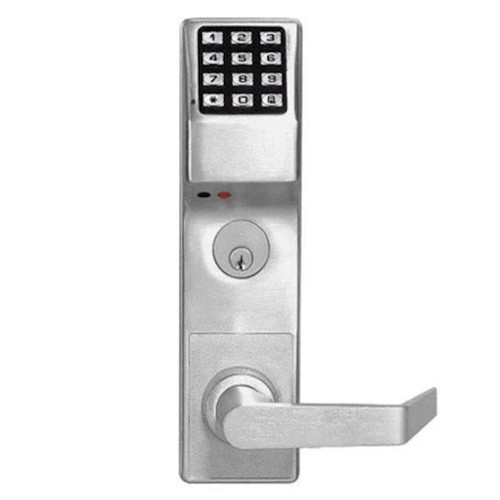

DL3500CRR-US26D Alarm Lock Trilogy Series Standalone Digital Mortise Keyless Lock Straight Leverset in Satin Chrome
The Trilogy DL3500 Series is Alarm Lock's one of the most popular standalone pushbutton Mortise lock with Grade 1 durability. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting the latch and reduces the stress on lock bodies and spindle. It has an outside lever free turning in the locked position. While entering the access code, key bypass or remote bypass allows the lever to retract the latch. Its inside lever always instant egress. It saves all the downtime and 1/2 the cost of hardwired systems.
- T3 advanced digital lock with audit trail; high capacity audit trail lock
- Weather-resistant
| LOCK FUNCTION | Classroom Mortise Lever Lock w/ High Capacity Audit Trail |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| CYLINDER | 1 3/8" (3.5cm) Mortise Cylinder supplied. Will accept 1 3/8" to 1 1/2" (3.5-3.8cm) Mortise Cylinder |
| CORE | Accepts 6 & 7 Pin cylinder from Best, Falcon, Arrow, KSP, Medeco Keymark, and Kaba Peaks |
| LATCHBOLT | Stainless Steel Latchbolt with 3/4" (1.91cm) projection and deadlocking latch. |
| STRIKE | 1 1/4" x 4 7/8" strike included |
| HANDING | Right-handed, reversible in the field |
| LEVER TRIM | Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 |
| FINISHES | US26D Satin Chrome |
| USER CODES | keypad supports 300 codes, Master, Management, Supervisor & Basic User. 500 event schedule, real-time clock & 40,000 event audit trail |
| CAMS | Straight Cam supplied |
| POWER | 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
-
