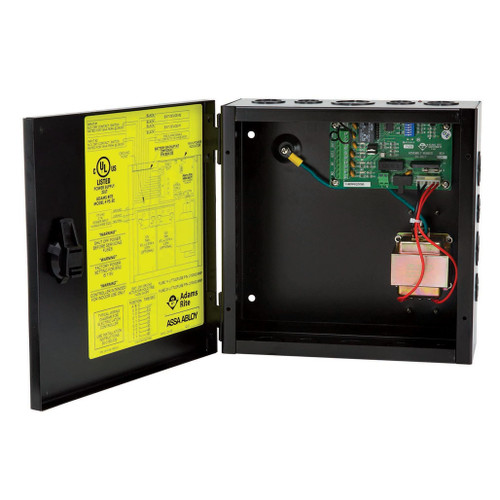

Power supply with optional battery backup for all 3000 and 8000 Series Exit Devices with Motorized Latch Retraction (SE) option.

Function- This power supply is designed for the Motorized Latch Retraction (SE) option on Adams Rite exit devices. It operates at 24 VDC to power up to two SE exit devices in sequential or independent modes. The PS-SE is also equipped with a fire alarm disconnect interface circuitry.

CertificationsUL listed
HousingHinged, steel cabinet measures 10" x 10-3/8" x 4-1/8" [254 mm x 263.5 mm x 104.8 mm]. Black, baked enamel finish, with knockouts for conduit connections.
Sized to accommodate two sealed, lead acid batteries (7AH, not included).
Operating ModesThe PS-SE is designed to power up to two 3000 SE or 8000 SE exit devices in the following operating modes:
- Near Simultaneous Mode – A single input switch (dry contact) operates two devices with less than one second delay. Ideal for double-door applications.
- Independent Mode – Each SE exit device is controlled by its own input switch.
Input Power115 VAC, 0.7A
Primary FuseThe PS-SE has two user-serviceable fuses:
- F1: Transformer output: 2A/250V 5x20MM
- F2: Transformer input: 2A/250V 5x20MM
Open Hold Times
The PS-SE has two open hold timers. Hold open time settings are adjustable from 2-60 seconds.
Output Voltage2 Amp @ 24VDC
