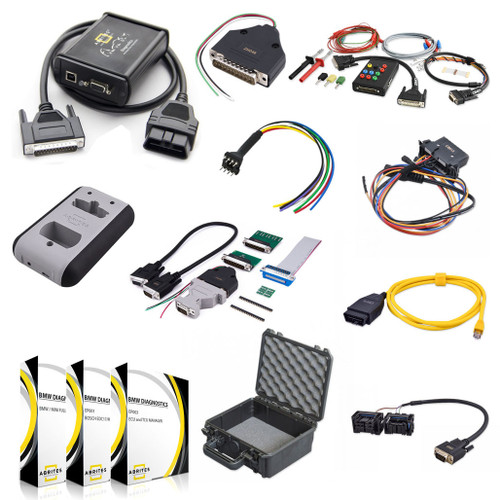

This package contains the following hardware and software tools:
• AVDI ABRITES Vehicle Diagnostics Interface
• ZN003 PROTAG Key and Transponder Programmer
• ZN030 ABPROG Programmer
• ZN051 ABRITES Distribution Box
• CB013 MSD/MSV Bench Connection Cable Set
• CB015 ENET cable
• CB023 BMW MD/MG ECU Connection Cable
• ZN057 EEPROM wire extender for ABPROG EEPROM/BCM adapter
• ZN046 Key Renewal Adapter
• ATC01 ABRITES Tough Case
• BMW Full software
• EP001 Bosch EDC17/MED17, Delphi, SIMxx
• EP003 ECU and TCU Manager
The ABRITES Vehicle Diagnostics Interface (AVDI) is the latest version of our interface that allows the connection between our state-of-the-art software and your vehicles. The AVDI is the basis upon which the whole ABRITES products ecosystem is founded. On this basis you can build a bespoke package of solutions tailored to your needs. The basic package will give you access to a vast array of functionalities that will allow you to enter the world of automotive diagnostics with a minimal investment. Additional purchases will allow you to cover a range of functionalities that is often unmatched by OEM tools.
The basic diagnostics that can be performed to all brands listed above are as follows:
- Complete vehicle scan
- Module identification – see all modules in the vehicle, complete with VIN and part numbers (where applicable)
- Reading and clearing diagnostic trouble codes (DTCs)
- Live data display – see live data from the sensors in the vehicle in real time
- Actuator testing – identify any possible issues in the car by performing actuator tests
What’s more, all owners of AVDI receive the PassThru driver, which is an invaluable tool allowing you to work with original equipment manufacturer software (OEM), when necessary as well as a vast array of special functions allowing them to get the full experience of our products straight away.
On top of all the free functionality, there are many options that can be purchased separately giving access to a wide range of opportunities for every professional. These functionalities are available as software special functions available in our online shop and include:
- Key programming – add a spare key or program keys in All Keys Lost situations
- Module replacement – perform parts exchange, module renewal, module adaptation
- PIN code reading – get information vital for key programming and module adaptation
- Component security bytes reading – read bytes in order to adapt modules and learn keys
- Cluster calibration – access the instrument cluster data
- Engine Control Unit (ECU) programming – update the software to apply custom settings
AVDI is unrivalled in giving you the opportunity to work with nearly 100 % of the vehicles around the world, and OEM tools, as well. It is a tool unmatched in versatility, coverage and functionality.
The new generation ZN003 Abrites PROTAG Programmer is the latest upgrade to our powerful key programming tool!
The ZN003 contains the full functionality of the ZN002 and expands its capabilities. With the PROTAG you can perform operations with keys and transponders, used in the latest authentication systems and immobilizers.
The ZN003 is durable and ergonomically shaped to provide additional ease of usage, equipped with 3 slots for different type of transponders. One of the slots is specially developed for the Mercedes-Benz truck keys. The design is optimised to eliminate transponder positioning error and maximise efficiency. PROTAG is ready to program all keys and transponders produced by Abrites, as well as a vast variety of OEM ones. It is the ultimate key programming tool for the professional locksmith.
PROTAG is user-friendly, efficient and reliant! The ZN003 is equipped with a USB Type C cable and battery so that you can always count on it. Also, a future extension for bluetooth connection and usage with iOS and Android devices is available.
Main PROTAG 2.0 features:
- Key programming for Mercedes, BMW, VAG
- Support for Mercedes-Benz infrared keys support
- Support for Mercedes-Benz truck keys
- Transponder/key cloning utility for multiple brands
- Transponder and key low-level operation functions
- Reset used OEM keys to virgin state ready for new programming
- Programming key/transponder by dump of immobilizer system (included support of Mercedes Infrared keys FBS3)
- Production of transponders and keys ready for programming to different immobilizer system(brand new empty transponders preparation for usage with different cars)
- Remote control frequency scanning
- Spare key and All Keys Lost key programming for 2010+ Porsche models by dump from the front BCM (9S12 Motorola MCU)
and more!
The Abrites Distribution Box (ZN051) is a proprietary set of cables and pins, allowing the AVDI to connect to different vehicles and modules, with CAN and K-Line protocols. It provides in-vehicle connection options, as well as bench and boot mode. It is very useful in reading/writing/updating numerous modules, together with the corresponding Abrites software. Very helpful with Mercedes, VAG, ECU Programming, and other software options. Automatically updated with all new functions and features immediately after launching.
The ZN030 ABPROG Programmer is a set of devices, designed to assist with many procedures, which require work on bench with multiple units in the vehicle.
Main functionalities:
- Read, write and erase SPI, Microwire and I2C memories
- Read, write and erase memory of the FEM/BDC without removing it
- Rread and write Bosch EDC16 units (MPC)
- Reading, writing, and erasing of NEC MCUs from Mercedes-Benz IR-keys
- Renew HITAG 2 type keys
- Reading and writing NEC V850 in different modules
- Reading EWS masks
The BMW Full package consists of special functions BN011, BN012, BN013, BN015.
The BN011 is a function dedicated to the adaptation of transmission control units to the EWS (Electronische Wegfahrsperre or electronic immobilizer system), commonly known as EGS (Electronic Gearbox Computer or Elektronische Getriebesteuerung) via OBDII. The ability to synchronize an EGS to a vehicle is used not only when adapting a new or used module to a vehicle, but also in some cases of key programming or replacing other modules which participate in the vehicle's drivetrain or security system. BN011 also allows the adaptation of Bosch MG/MD ECUs in G-series vehicles by DFlash dump.
Main functionalities:
- ZF6HP EGS adaptation to E-Series vehicles
- ZF8HP EGS adaptation to E-Series vehicles
- ( DME/ DDE of the donor car (donor of EGS) or dump from the DME/ DDE (Digitale Motor Elektronik /Digitale Diesel Elektronik)of the donor car is needed in the cases where an 8HP transmission is installed in an E-Series vehicle)
- ZF8HP EGS adaptation to F-Series vehicles
- BOSCH MG/MD adaptation to G-series vehicles (by dump)
Supported models and ECUs:
- All BMW E-Series vehicles
- All BMW F-Series vehicles
- All Bosch MG/MD ECUs in G-Series by DFlash dump
BN012 is required for adaptation of 6-speed gearboxes in E-series vehicles if no working key is present or a ZN002 PROTAG programmer if a working key is present.
The BN012 license provides various functionalities for all BMW vehicles.
Main functionalities:
- DME / DDE ISN reading
- DME / DDE Dflash/Pflash reading
- DME / DDE flashing
- DME / DDE working hours reset
- Flashing / Programming of all electronic control modules
- Coding of all electronic control modules
- Vehicle order / Central coding (VO) configuration or Fahrzeugbestellung (FA).
- Mileage calibration
- ID change (VIN)
- FSC code generator for CCC/CIC/NBT
- Service intervals reset
Applicability:
- DME / DDE ISN reading - used for reading and displaying ISN (Individual Serial Number) of the
- DME/DDE (Digitale Motor Elektronik/Digitale Diesel Elektronik) via OBDII. This function is very useful when programming keys in all keys lost situations.
- DME / DDE Dflash/Pflash reading via boot mode - used for reading and writing of Dflash and PFlash of DME/DDE in boot mode which is very useful when programming keys to FEM/BDC vehicles in all keys lost situations. This option allows also to reset the working hours in DME / DDE.
DME / DDE flashing - used for reflashing and updating of the DME / DDE via OBDII or for reading of the ISN of the DME / DDE requires reflashing. - Flashing / Programming of all electronic control modules - used for changing the flash version of all electronic control modules via OBDII. A large program flash database is available which inludes the latest updates
- Coding of all electronic control modules - used for changing in an easy way different coding options / parameters in all electronic control modules and enabling / disabling different functionalities such as Video in motion, mirror folding, cornering lights, fog lights and many others via OBDII. Default coding is also available (used for setting default coding values if the coding has been lost or if the electronic control module has been retrofitted)
- Vehicle order / Central coding (VO) configuration - used for retrofitting options, adding / removing electronic control modules / options and setting default values to them via OBDII
- Mileage calibration - used for reading / updating the mileage in almost all electronic control modules which store mileage value like IKE, LCM, EWS, ECU, ABS, VTG, EGS and others (dashboards excluded because of the incremental memory inside)
- ID change (VIN) - used for reading / changing the VIN (Vehicle Identification Number) when replacing electronic control modules
- Service intervals reset - used for resetting the service intervals of the vehicle such as oil change reset, brake pads change and others.
- FSC code generator - used for generating of FSC codes when updating the head unit (navigation) or the maps for CCC/CIC/NBT (Car Communication Computer/ Head Unit Car Infotainment Computer/Head Unit Next Big Thing)
Supported models:
- All BMW E-series vehicles
- All BMW F-series vehicles
- All BMW G-series vehicles
The BN013 license allows performing key programming procedures (adding a spare key and ALL KEYS LOST) on ALL F-Series BMW, Mini and Rolls Royce vehicles, equipped with CAS4 (by OBDII) or FEM/BDC (by dump). Key programming for bikes (adding a spare key and ALL KEYS LOST) with EWS4 is also supported. In addition, BN013 allows you to reset the mileage in CAS4 or FEM/BDC, virgin (reset) of CAS4 or FEM/BDC, and adapt CAS4 or FEM/BDC units.
Main functionality:
- Key learning for F-Series with CAS4 (by OBDII) or FEM/BDC module (by dump)
- Virgin (reset) of CAS4 and FEM/BDC
- Adapt CAS4 and FEM/BDC
- Mileage reset in CAS4 and FEM/BDC
Supported vehicles:
- ALL F-Series (BMW, Mini, Rolls Royce)
- BMW bikes
BN015 now includes key programming for BDC versions 85 or higher by OBDII!
This license allows performing key programming procedures (adding a spare key and ALL KEYS LOST) to ALL E-series vehicles with CAS3 and CAS3+ modules and F-series vehicles with BDC modules COMPLETELY BY OBDII.
Main functionalities:
- Key programming for E-series vehicles with CAS3 and CAS3+ modules by OBDII
- Key programming for F-series vehicles with BDC module by OBDII (v85 and higher included)
- Adaptation of BDC modules by OBDII for F-series
Other functionalities:
- Mileage Calibration (dashboard excluded)
- ISN read/write/change
Supported vehicles:
- ALL E-series vehicles with CAS3 and CAS3+ modules (BMW, MINI and Rolls Royce)
- ALL F-series vehicles with BDC module (BMW, MINI and Rolls Royce)
- BMW X1 (F48)
- BMW X2 (F39)
- BMW X5 (F15)
- BMW X6 (F16)
- MINI Clubman (F54)
- MINI Hatch (F55/F56)
- MINI Convertible (F57)
- MINI Countryman (F60)
In order to perform the key programming procedures, you will need the ZN003 PROTAG. The use of CB015 ENET cable is strongly recommended.
The BN012 license is required for ISN reading of DME/DDE in All Keys Lost situations.
The CB015 is an ENET cable used in key programming procedures for BMW vehicles.
It is used with the BN014 license for spare key and All Keys Lost key learning by OBDII for F-Series vehicles equipped with BDC modules (versions up to 85).
The Annual Maintenance Subscription (AMS) is the gateway to the full capacity of the ABRITES products. The AMS is an essential part of the ABRITES ecosystem and a crucial counterpart to the AVDI, providing access to the following:
- All Online services
- Latest software releases
- Updates to existing functions
- Promotional releases and updates
The ZN051 Abrites Distribution Box is a proprietary set of cables and pins, allowing the AVDI to connect to different vehicles and modules, with CAN and K-Line protocols. It provides in-vehicle connection options, as well as bench and boot mode. It is very useful in reading/writing/updating numerous modules, together with the corresponding Abrites software. Very helpful with Mercedes, VAG, ECU Programming, and other software options. Automatically updated with all new functions and features immediately after launching.
The ZN051 includes:
- CB401 cable set for bench connection to ECUs
- CB402 extension cable for connection to AVDI
- Built-in fuse relay
- Built-in LED indicator
- Set of cables for different connections
The ZN057 is a wire extender for the ZN031 - ABPROG EEPROM/BCM adapter, used to read chips without removing them from the PCB in tasks such as reading the EEPROM of the FEM/BDC module in BMW F-series vehicles.
The ZN046 is an adapter for renewing used keys in order for them to be programmed to another vehicle. It is an invaluable tool for all locksmiths, used with the ABPROG programmer.
Supported keys:
- All types of keys with a PCF processor
(During the key renewal procedure, the adapter is soldered onto the PCB of the key and connected to the ABPROG programmer.)
The EP001 Bosch EDC17/MED17, Delphi, SIMxx ECU Programming Tool is dedicated to full reading/writing/updating and checksum correction of Dflash, Internal/External Pflash and Map Files of Engine Control Units by bench (direct connection), boot mode and diagnostics (OBDII).
The ECU Programming Tool allows also the virtual reading of Flash, Maps and Bootloader.
Supported ECUs:
- Bosch EDC17/MED17
- Delphi
- Continental/Siemens SIMxx
- Kefico
The EP003 ECU and TCU Manager license allows the full reading/writing/updating of PFlash, DFlash and Maps, as well as checksum correction of MD/MG Engine Control Units and VGS2-FDCT/ZF 8HP/DQ381 Transmission Control Units on bench.
The procedures allow exchanging these modules in a wide selection of vehicles.
Supported ECUs:
- MD/MD1 with SPCxxx and TC2xx
- MG/MG1 with SPCxxx and TC2xx
Supported TCUs:
- VGSNAG3 9G-tronic
- VGS2-FDCT
- ZF 8HP
- DQ381
- Getrag 7DCT300
Thе CB013 cable set for bench connection to ECUs is a proprietary hardware, designed, developed and produced by ABRITES. It is required when reading the ISN of ECUs in BMW vehicles on bench, as well as reading the PIN code of the Engine Control Unit in PSA vehicles, manufactured after 2001. This cable set is used to connect the AVDI to the Engine Control Unit.
Supported brands:
- BMW
- Peugeot
- Citroën
- other PSA-based platforms
Supported BMW ECUs include:
- MSD80
- MSD81
- MSD82
- MSV81
- MSV82
(not used with MSV80 ECUs as the ISN is read by OBDII for it)
Supported PSA ECUs include:
- All Engine Control Units 2001-2021+
What's inside:
CAN L (blue wire) - used for connection to CAN Low
CAN H (red wire) - used for connection to CAN High
B+ connector (yellow wire) – one terminal is used for +12V, the other for IGN
GND connector (black wire)
The CB023 cable is intended for direct connection on bench with the engine control units from BOSCH types MD1, MG1 in BMW vehicles. The cable is useful for diagnostic purposes on bench and of course for FLASH/DFLASH programming using EP003 functionality of Abrites ECU Programming Tool.
In order to complete the procedures, you will require the ZN051 Abrites Distribution Box.
The ABRITES Support Plan Service (SPS) is an annual subscription service which provides access to the ABRITES ticketing system. The Abrites Support Plan Service enables customers to receive support from the Abrites Support Team.
The Support Team analyse, detect, determine and provide possible solutions to issues that may occur while using the Abrites products.
The SPS works in a written form via the Abrites ticketing platform. Once the SPS is purchased, an account is created in the platform where all the problem solving takes place. If the customer is registered with an Abrites partner, the ticket submission is done exclusively by this partner and an individual account is NOT created.
The SPS subscription ensures the following:
- Access to the Abrites Support ticketing system
- Prioritised fast response from 2 hours of opening a ticket (9 AM - 6 PM GMT+2)
- Unlimited quantity of cases
- Undivided attention from a Support Team member
All hardware is neatly packed in an ABRITES Tough Case ATC01, which is durable, strong and reliable.
Order this package only during the BMW Promo 2024 (18-31 March)!
-
Item #:
202721
-
SKU:
ABRITES-BMW-ADVANCED-PACK
