The ABRITES Vehicle Diagnostics Interface (AVDI) is the latest version of our interface that allows the connection between our state-of-the-art software and your vehicles. The AVDI is the basis upon which the whole ABRITES products ecosystem is founded. On this basis you can build a bespoke package of solutions tailored to your needs. The basic package will give you access to a vast array of functionalities that will allow you to enter the world of automotive diagnostics with a minimal investment. Additional purchases will allow you to cover a range of functionalities that is often unmatched by OEM tools.

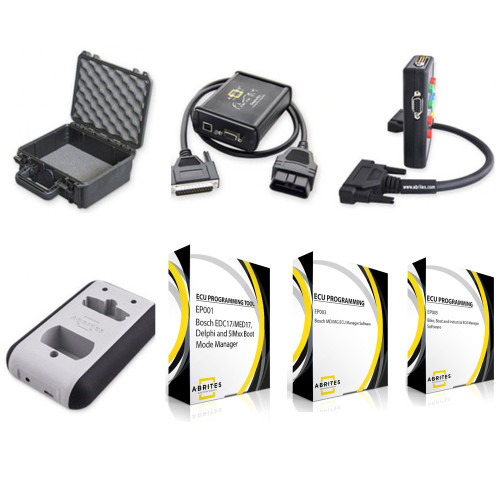

INCLUDES:
- AVDI-Abrites Vehicle Diagnostics Interface
- ATC01-Small Tough Case
- ZN003-Protag V2 with TA31 and Activation
- ZN051-Abrites Distribution Box
- EP001-Abrites Bosch EDC17/MED17 Software
- EP003-Abrites Bosch MD/MG ECU manager
- EP005-Abrites Bike & Boat industrial ECU manager
The basic diagnostics that can be performed to all brands listed above are as follows:
- Complete vehicle scan
- Module identification – see all modules in the vehicle, complete with VIN and part numbers (where applicable)
- Reading and clearing diagnostic trouble codes (DTCs)
- Live data display – see live data from the sensors in the vehicle in real time
- Actuator testing – identify any possible issues in the car by performing actuator tests
What’s more, all owners of AVDI receive the PassThru driver, which is an invaluable tool allowing you to work with original equipment manufacturer software (OEM), when necessary as well as a vast array of special functions allowing them to get the full experience of our products straight away.
On top of all the free functionality, there are many options that can be purchased separately giving access to a wide range of opportunities for every professional. These functionalities are available as software special functions available in our online shop and include:
- Key programming – add a spare key or program keys in All Keys Lost situations
- Module replacement – perform parts exchange, module renewal, module adaptation
- PIN code reading – get information vital for key programming and module adaptation
- Component security bytes reading – read bytes in order to adapt modules and learn keys
- Cluster calibration – access the instrument cluster data
- Engine Control Unit (ECU) programming – update the software to apply custom settings
AVDI is unrivalled in giving you the opportunity to work with nearly 100 % of the vehicles around the world, and OEM tools, as well. It is a tool unmatched in versatility, coverage and functionality.
ZN003
The new generation Abrites PROTAG Programmer is the latest upgrade to our powerful key programming tool!
The ZN003 contains the full functionality of the ZN002 and expands its capabilities. With the PROTAG you can perform operations with keys and transponders, used in the latest authentication systems and immobilizers.
The ZN003 is durable and ergonomically shaped to provide additional ease of usage, equipped with 3 slots for different type of transponders. One of the slots is specially developed for the Mercedes-Benz truck keys. The design is optimised to eliminate transponder positioning error and maximise efficiency. PROTAG is ready to program all keys and transponders produced by Abrites, as well as a vast variety of OEM ones. It is the ultimate key programming tool for the professional locksmith.
PROTAG is user-friendly, efficient and reliant! The ZN003 is equipped with a USB Type C cable and battery so that you can always count on it. Also, a future extension for bluetooth connection and usage with iOS and Android devices is available.
Main PROTAG 2.0 features:
- Key programming for Mercedes, BMW, VAG
- Support for Mercedes-Benz infrared keys support
- Support for Mercedes-Benz truck keys
- Transponder/key cloning utility for multiple brands
- Transponder and key low-level operation functions
- Reset used OEM keys to virgin state ready for new programming
- Programming key/transponder by dump of immobilizer system (included support of Mercedes Infrared keys FBS3)
- Production of transponders and keys ready for programming to different immobilizer system (brand new empty transponders preparation for usage with different cars)
- Remote control frequency scanning
- Spare key and All Keys Lost key programming for 2010+ Porsche models by dump from the front BCM (9S12 Motorola MCU)
- and more!
The Abrites Distribution Box (ZN051) is a proprietary set of cables and pins, allowing the AVDI to connect to different vehicles and modules, with CAN and K-Line protocols. It provides in-vehicle connection options, as well as bench and boot mode. It is very useful in reading/writing/updating numerous modules, together with the corresponding Abrites software. Very helpful with Mercedes, VAG, ECU Programming, and other software options. Automatically updated with all new functions and features immediately after launching.
EP001
Programming tool dedicated to reading/writing/updating of the Configuration Data (EEPROM), Internal and External Flash of Bosch EDC17/MED17, Delphi and SIMxx by boot mode.
The function is not limited to VAG vehicles and can be used on other brands utilizing the Bosch MED/EDC 17, Continental, Delphi, Kefico Motor Electronics.
- Full access to the memory through boot-mode (CAN bus)
- Read/Update EDC17/MED17 eeprom/flash memory
- It is strongly recommended that you use the ZN051 Distribution Box when working with the EP001 special function in order to be able to
toggle between BOOT MODE and Diagnostic mode which is very helpful for working with EDC17/ MED17
- Read Component Security(CS) and PIN of VAG ECUs
- Read/Update mileage in VAG Engine Control Units.
- Clone VAG Engine Control Units.
- Fix flash checksums
- Read/Update ISN in BMW DME/DDE control units
- Read/Update 8HP EGS ISN in BMW DME/DDE control units (F-series)
- Reset working hours counter in BMW DME/DDE control units.
- All functions of VN004 are also included.
Free for owners of VN004 and a valid AMS.
The new ECU Programming Tool includes ECUs from the following brands:
- BMW - BOSCH
- ISUZU - BOSCH
- KIA/ HYUNDAI - BOSCH, CONTINENTAL, DELPHI, KEFICO
- MERCEDES - BOSCH, CONTINENTAL, DELPHI
- MINI - BOSCH
- PORSCHE - BOSCH
- PEUGEOT/ CITROEN - BOSCH
- RENAULT - BOSCH
- VAG - BOSCH
EP003
Bosch MD/MG ECU manager
EP005
Bike, boat and industrial ECU manager
The Annual Maintenance Subscription (AMS) is the gateway to the full capacity of the ABRITES products. The AMS is an essential part of the ABRITES ecosystem and a crucial counterpart to the AVDI, providing access to the following:
- All Online services
- Latest software releases
- Updates to existing functions
- Promotional releases and updates
The AMS is valid for 12 months and renewal is due on the date this period expires. Bear in mind that all ABRITES special functions require an active AMS in order to be purchased and used.
The ABRITES Support Plan Service (SPS) is an annual subscription service which provides access to the ABRITES ticketing system. The Abrites Support Plan Service enables customers to receive support from the Abrites Support Team.
The Support Team analyse, detect, determine and provide possible solutions to issues that may occur while using the Abrites products.
The SPS works in a written form via the Abrites ticketing platform. Once the SPS is purchased, an account is created in the platform where all the problem solving takes place. If the customer is registered with an Abrites partner, the ticket submission is done exclusively by this partner and an individual account is NOT created.
The SPS subscription ensures the following:
Access to the Abrites Support ticketing system
Prioritised fast response from 2 hours of opening a ticket (9 AM - 6 PM GMT+2)
Unlimited quantity of cases
Undivided attention from a Support Team member
The Abrites Tough Case is the perfect solution when you need to be mobile with your tools and keep them protected.
This compact and easy-to-carry case contains pick and pluck foam, so that your tools are preserved from shocks and damage. The case is made from extremely durable materials and holds certifications for water and dust resistance (IP67 - waterproof and dustproof). In addition to these features, the ATC can be submerged for longer periods of time (usually about 30 minutes under at least 1 meter of water).
All these features come together in a neat package to bring a solution for storing and transporting expensive equipment and hi-tech instruments. Lock ready.
-
Item #:
201007
-
SKU:
ABRITES-ECU-MASTER-PACK
